Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 23003446 Bridge, Suspension 11 Appelez-nous -
002 23003447 Frame 11 Appelez-nous -
003 23003463 Screw (m10x70) 11 Appelez-nous -
004 23003448 Ring, Slide (front) 11 Appelez-nous -
005 23003449 Ring, Slide (middle) 11 Appelez-nous -
006 23003450 Weight, Counter (lwr) 11 Appelez-nous -
007 23001034 Nut (m6) 11 Appelez-nous -
008 23001027 Washer (dia. 12x6.5x1.6) 11 Appelez-nous -
009 23002983 Damper (rd 12-2) 11 Special Order $ 392.15

010 23003451 Leg, Spring 11 Appelez-nous -
011 23003452 Spring (white) 11 Appelez-nous -
011 23003453 Spring (yellow) 11 Appelez-nous -
011 23003457 Spring (red) 11 Appelez-nous -
012 23003454 Holder, Spring (upr) Lu 11 Appelez-nous -
013 23001282 Washer   (Replaces: 23003455) 11 Special Order $ 15.36

014 23003456 Rubber (blk-upr) 11 Appelez-nous -
015 23003458 Leg 11 Appelez-nous -
016 23003459 Rubber (blk-lwr) Lu 11 Appelez-nous -
017 23001028 Lock Washer External Teethm6lu 11 Appelez-nous -
018 23001425 Bolt (m10x50) 11 Appelez-nous -
019 23001282 Washer (dia. 37 X 13 X 3) 11 Special Order $ 15.36

020 23001400 Lock Washer, Spring 11 Appelez-nous -
021 23001661 Nut (m10)   (Replaces: 23001240) 11 Special Order $ 15.61

022 NLA Bolt (m12x30) 11 Appelez-nous -
023 23001292 Washer (13) 11 Appelez-nous -
024 23001419 Washer (12) 11 Appelez-nous -
025 23001303 Nut (m12) 11 Appelez-nous -
026 23003464 Ring 11 Appelez-nous -
027 23003460 Nut (m8) 11 Appelez-nous -
028 23001203 Washer (dia. 16 X 8.4 X 1.6) 11 Appelez-nous -
029 23001265 Washer (8) 11 Appelez-nous -
030 23003465 Holder, Spring (lwr) 11 Appelez-nous -
031 23003466 Tube 11 Appelez-nous -
032 23001400 Lock Washer, Spring 11 Appelez-nous -
033 23001241 Locking Nut, Self (m10) Lu 11 Special Order $ 2,647.47

034 23003461 Screw (m10x40) 11 Appelez-nous -
035 23001026 Bolt (m6 X 16) 11 Appelez-nous -
036 23003462 Screw (m8x70) 11 Appelez-nous -
037 23001266 Nut M8 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

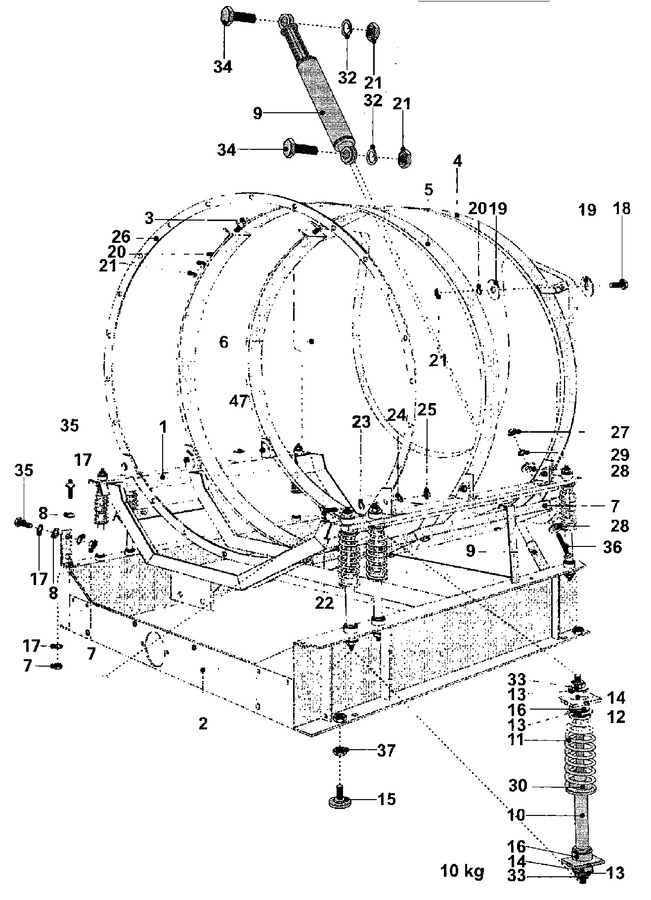

Diagram for MFS25PNAVS
