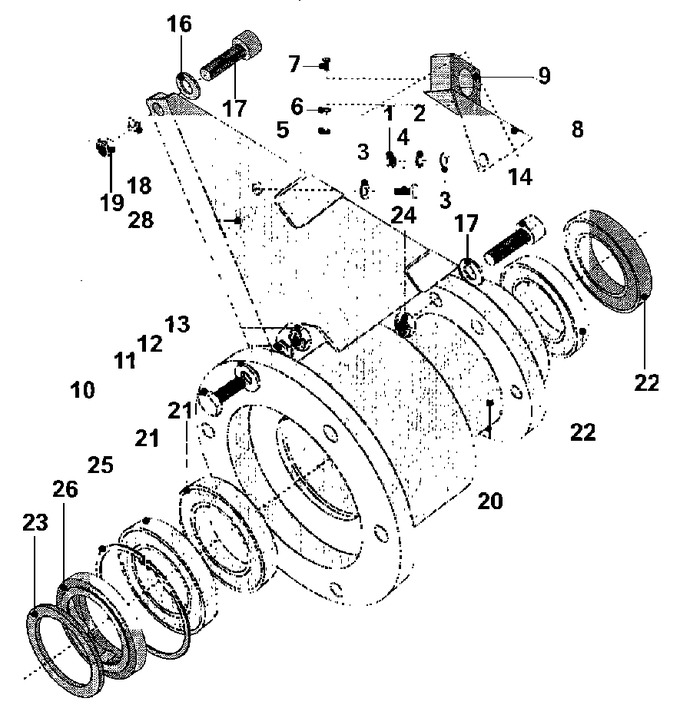

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001575		Nut, Insert (m6)	11	Appelez-nous	-
002	23001028		Lock Washer External Teethm6lu	11	Appelez-nous	-
003	23001309		Washer (6.4) Lu	11	Appelez-nous	-
004	23001026		Bolt (m6 X 16)	11	Appelez-nous	-
005	23001055		Nut (m4)	11	Appelez-nous	-
006	23001670		Washer (m4)	11	Appelez-nous	-
007	W10295997		Screw (m4 X 16 Ck)   (Replaces: 23001089)	11			$ 6.27
008	23003555		Holder, Thermostat	11	Appelez-nous	-
009	23003556		Clip, Cable	11	Appelez-nous	-
010	NLA		Screw (m10x30)	11	Appelez-nous	-
011	23001201		Washer (dia. 22x11x1 Brass)	11			$ 303.26
012	23001400		Lock Washer, Spring	11	Appelez-nous	-
013	23001661		Nut (m10)   (Replaces: 23001240)	11			$ 15.61
014	NLA		Bolt (m10x40)	11	Appelez-nous	-
015	23001203		Washer (dia. 16 X 8.4 X 1.6)	11	Appelez-nous	-
015	23003553		Spoke	11	Appelez-nous	-
016	23001263		Washer (8.4)	11	Appelez-nous	-
017	NLA		Washer (10.5)	11	Appelez-nous	-
018	23001265		Washer (8)	11	Appelez-nous	-
019	23001306		Locking Nut, Self	11	Appelez-nous	-
020	23003552		Housing, Bearing	11	Appelez-nous	-
021	23001231		Bearing (6209 2rs C3)	11	Appelez-nous	-
022	23001232		Bearing (rear)	11	Appelez-nous	-
023	23001233		Ring, Seal	11	Appelez-nous	-
024	23003556		Clip, Cable	11	Appelez-nous	-
025	23001235		Ring, Internal Snap	11			$ 2,741.81
026	23001234		Seal, Water	11	Appelez-nous	-
