SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Top Cover/soap Hopper


04 - Water System


05 - Two Motor Drive


06 - Wash Drum And Tub


07 - Door


08 - Trunnion


09 - Rear Panel


10 - Door Lock


11 - Internal Controls


12 - Control Panel

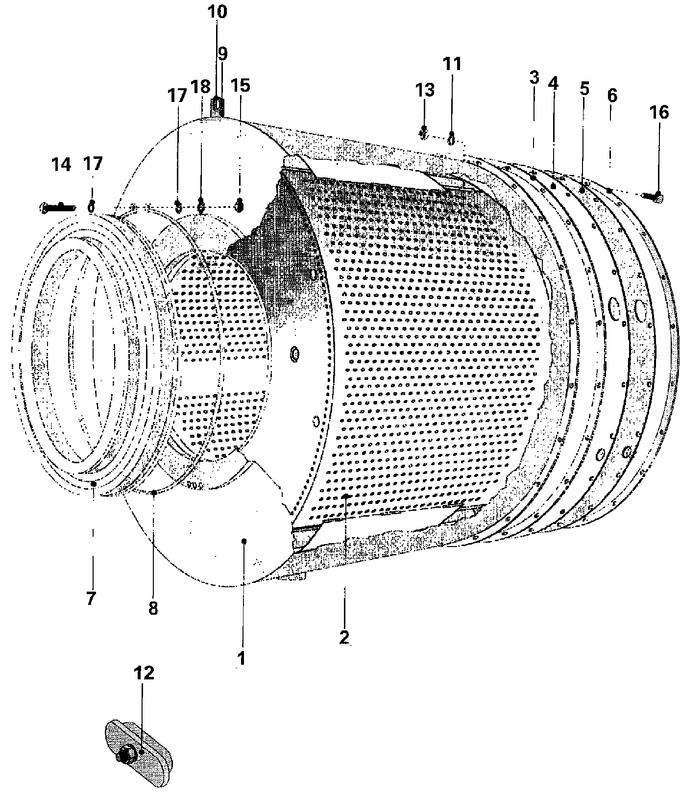

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003534		Tub	11	Appelez-nous	-
002	23003535		Drum	11	Appelez-nous	-
003	23001386		Gasket, Shell (rear)	11	Appelez-nous	-
004	NLA		Plate, Back (stnls Steel)	11	Appelez-nous	-
005	23001383		Plate, Back (iron)	11	Appelez-nous	-
006	23003464		Ring	11	Appelez-nous	-
007	23003536		Housing, Tub	11	Appelez-nous	-
008	23003537		Ring, Fixation	11	Appelez-nous	-
009	23003538		Holder	11	Appelez-nous	-
010	23003539		Passage, Cable	11	Appelez-nous	-
011	23001265		Washer (8)	11	Appelez-nous	-
012	23001594		Blind, Heating Element	11	Appelez-nous	-
013	NLA		Nut M8	11	Appelez-nous	-
014	23003541		Screw (m6x70)	11	Appelez-nous	-
015	23001034		Nut (m6)	11	Appelez-nous	-
016	23003542		Screw (m8x45)	11	Appelez-nous	-
017	23001309		Washer (6.4) Lu	11	Appelez-nous	-
018	23001028		Lock Washer External Teethm6lu	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
