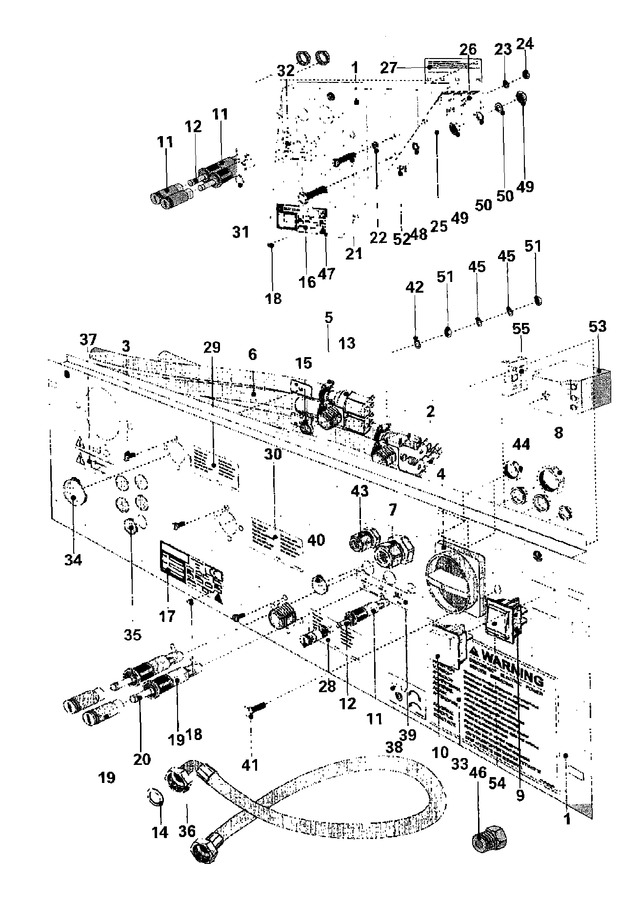

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003629 | Panel, Rear | 11 |
|
- | ||||
| 002 | 23001533 | Valve, Three-way | 11 |
|
$ 99.79 | ||||
| 003 | NLA | Screw (m4x6) | 11 |
|
- | ||||
| 004 | 23003497 | Knob | 11 |
|
- | ||||
| 005 | WP596669 | Clamp, Hose (Replaces: 23001506) | 11 |
|
Immediately | $ 7.56 | |||
| 006 | 23001507 | Waterhose (green) | 11 |
|
- | ||||
| 007 | 23002211 | Swivel, Cable | 11 |
|
- | ||||
| 008 | 23003138 | Nut | 11 |
|
$ 831.00 | ||||
| 009 | 23001529 | Button (rapid Advance) | 11 |
|
- | ||||
| 010 | 23001452 | Plug (wht) | 11 |
|
- | ||||
| 011 | 23001462 | Holder, Fuse | 11 |
|
- | ||||
| 012 | 23002919 | Fuse (5a) | 11 |
|
- | ||||
| 013 | 23001455 | Valve, Two Way (220v 50/60hz) | 11 |
|
- | ||||
| 014 | 23002921 | Washer, Fill Hose | 11 |
|
- | ||||
| 015 | 23003498 | Filter, Valve | 11 |
|
- | ||||
| 016 | 23003494 | Plate, Serial | 11 |
|
- | ||||
| 016 | NLA | Plate, Serial (neutral) | 11 |
|
- | ||||
| 017 | 23003387 | Identification Plate (export) | 11 |
|
- | ||||
| 018 | 23001033 | Rivets, Blind (dia. 3.2 X 8)lu | 11 |
|
- | ||||
| 019 | 23002210 | Holder, Fuse | 11 |
|
- | ||||
| 020 | WP22001555 | Fuse 1a (Replaces: 23003495) | 11 |
|
Immediately | $ 27.33 | |||
| 021 | W10295997 | Screw (m4 X 16 Ck) (Replaces: 23001089) | 11 |
|
$ 6.27 | ||||
| 022 | 23001013 | Lock Washer External Teeth M4 | 11 |
|
- | ||||
| 023 | 23001013 | Lock Washer External Teeth M4 | 11 |
|
- | ||||
| 024 | 23001055 | Nut (m4) | 11 |
|
- | ||||
| 025 | 23001115 | Insulation Paper | 11 |
|
- | ||||
| 026 | 23002923 | Board, Terminal | 11 |
|
- | ||||
| 027 | NLA | Label, Terminal | 11 |
|
- | ||||
| 028 | 23001469 | Sticker, Hot Water | 11 |
|
$ 1,212.53 | ||||
| 029 | 23001471 | Sticker, Cold Soft Water | 11 |
|
$ 1,387.22 | ||||
| 030 | NLA | Sticker, Cold Hard Water | 11 |
|
- | ||||
| 031 | NLA | Plug (13) | 11 |
|
- | ||||
| 032 | NLA | Sticker (1a) | 11 |
|
- | ||||
| 033 | 23001465 | Sticker, Electricity Warning | 11 |
|
- | ||||
| 034 | 23001476 | Plug, Water Inlet | 11 |
|
$ 705.49 | ||||
| 035 | NLA | Plug (13) | 11 |
|
- | ||||
| 036 | 23003496 | Hose, Inlet | 11 |
|
- | ||||
| 037 | 23002053 | Label, Warning Vent Out | 11 |
|
- | ||||
| 038 | 23001468 | Sticker, Spin Direction | 11 |
|
$ 870.39 | ||||
| 039 | 23003328 | Sticker (1a 400v) | 11 |
|
- | ||||
| 040 | 23001476 | Plug, Water Inlet | 11 |
|
$ 705.49 | ||||
| 041 | 23001311 | Bolt (m6 X 25) | 11 |
|
- | ||||
| 042 | 23001028 | Lock Washer External Teethm6lu | 11 |
|
- | ||||
| 043 | 23002196 | Swivel, Cable | 11 |
|
- | ||||
| 044 | 23002197 | Nut | 11 |
|
- | ||||
| 045 | 23001313 | Washer (6.4) | 11 |
|
- | ||||
| 046 | 23001477 | Adapter (3/4`` Pipe To 3/4`` Hos | 11 |
|
$ 1,009.32 | ||||
| 047 | 23001311 | Bolt (m6 X 25) | 11 |
|
- | ||||
| 048 | 23001028 | Lock Washer External Teethm6lu | 11 |
|
- | ||||
| 049 | 23001312 | Nut M6 | 11 |
|
- | ||||
| 050 | 23001313 | Washer (6.4) | 11 |
|
- | ||||
| 051 | 23001312 | Nut M6 | 11 |
|
- | ||||
| 052 | 23003499 | Label Pe | 11 |
|
- | ||||
| 053 | 23003500 | Switch, Main (25a) | 11 |
|
- | ||||
| 053 | 23003501 | Switch, Main (32a) | 11 |
|
- | ||||
| 053 | 23003502 | Switch, Main (63a) | 11 |
|
- | ||||
| 053 | 23003503 | Switch, Main (80a) | 11 |
|
- | ||||
| 054 | 23001532 | Cover, Button (plastic) | 11 |
|
- | ||||
| 055 | 23003504 | Pole, Nuetral (25/32a) | 11 |
|
- | ||||
| 055 | 23003505 | Pole, Nuetral (63a) | 11 |
|
- | ||||
| 055 | 23003506 | Pole, Nuetral (80a) | 11 |
|
- |
