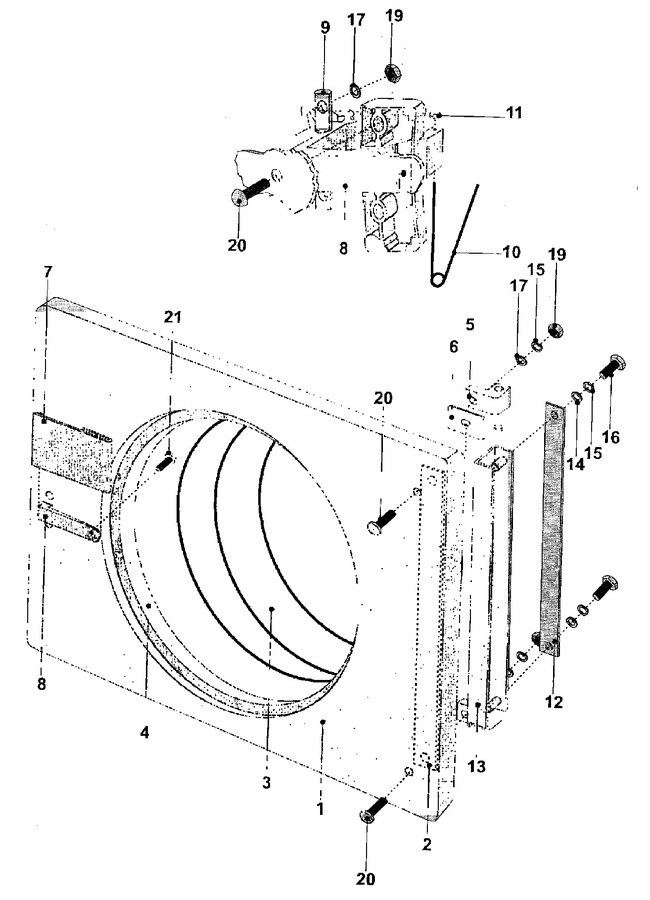

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003543		Door	11	Appelez-nous	-
002	NLA		Reinforcement	11	Appelez-nous	-
003	23003544		Glass, Door	11	Appelez-nous	-
004	23001365		Rubber, Door Glass	11	Appelez-nous	-
005	23003545		Blocs, Hinge Lu	11	Appelez-nous	-
006	NLA		Plates, Regulating	11	Appelez-nous	-
007	23001614		Doorlock, Handlegrip	11	Appelez-nous	-
007	23003631		Handle, Door (front)	14	Appelez-nous	-
007	23003632		Handle, Door (back)	14	Appelez-nous	-
008	23001167		Handle, Door Lever	11	Appelez-nous	-
008	23003633		Lever, Door	14	Appelez-nous	-
009	23001168		Shaft, Lever	11	Appelez-nous	-
010	23001148		Coil Spring, Handle Latch Bar	11	Appelez-nous	-
010	23001169		Spring, Handle Lever	14	Appelez-nous	-
011	23001057		Speednut (m3)	11	Appelez-nous	-
012	NLA		Reinforcement	11	Appelez-nous	-
013	23003548		Hinge, Door	11	Appelez-nous	-
014	23001159		Washer (dia. 14x8.6x1 Stnls)lu	11	Appelez-nous	-
015	23001158		Washer M6	11	Appelez-nous	-
016	23001371		Screw (m6 X 20 Stnls Steel)	11	Appelez-nous	-
017	23001159		Washer (dia. 14x8.6x1 Stnls)lu	11	Appelez-nous	-
019	23001176		Nut (m6 Stainless Steel)	11	Appelez-nous	-
020	23002937		Screw (m6x26)	11	Appelez-nous	-
021	8173901		Screw (m4 X 10)   (Replaces: 23001177)	14	Appelez-nous	-
021	NLA		Screw (m4x8)	11	Appelez-nous	-
