01 - Frame


02 - Cabinet


03 - Top Cover/soap Hopper


04 - Water System

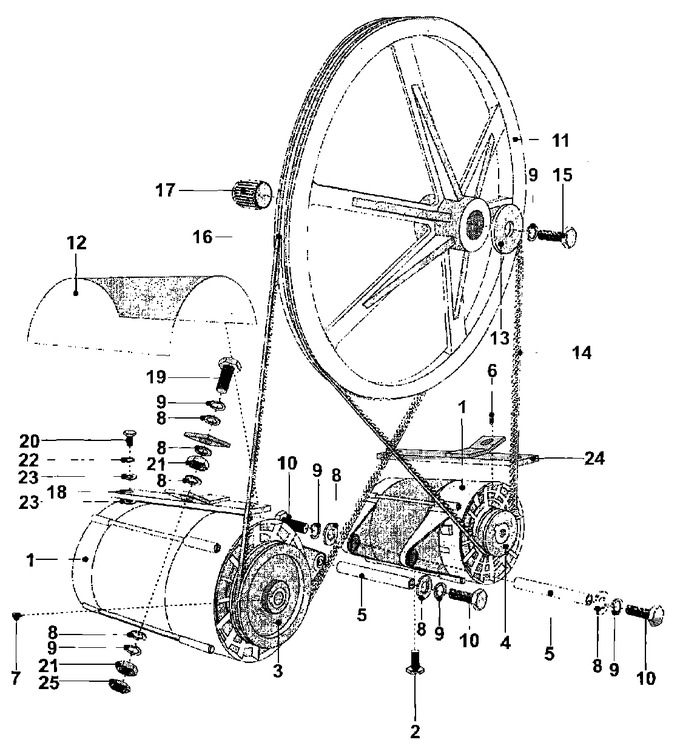

05 - Two Motor Drive


06 - Wash Drum And Tub


07 - Door


08 - Trunnion


09 - Rear Panel


10 - Door Lock


11 - Internal Controls


12 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003518		Motor	11	Appelez-nous	-
001	23003519		Motor (60hz)	11	Appelez-nous	-
002	20002815		Bolt (m6 X 12 Stainless Steel)   (Replaces: 23001157)	11			$ 188.18
003	23003520		V-pulley (d100 60hz)	11	Appelez-nous	-
004	23003521		V-pulley (d64 50hz)	11	Appelez-nous	-
005	23003522		Axle, Motor	11	Appelez-nous	-
006	23001289		Screw, Allen Set (m8 X 10)	11	Appelez-nous	-
007	NLA		Screw (m8x20)	11	Appelez-nous	-
008	23001292		Washer (13)	11	Appelez-nous	-
009	23001419		Washer (12)	11	Appelez-nous	-
010	NLA		Bolt (m12x30)	11	Appelez-nous	-
011	23001415		Pulley, Basket	11	Appelez-nous	-
012	NLA		Cover, Plastic	11	Appelez-nous	-
013	NLA		Washer	11	Appelez-nous	-
014	23003525		V-belt (10x1700)	11	Appelez-nous	-
015	23001418		Bolt (m12 X 25)	11	Appelez-nous	-
016	23003526		V-belt (10x1616)	11	Appelez-nous	-
017	23001410		Ring, Tolerance (dia. 28)	11	Appelez-nous	-
018	23003527		Bar, Tightening	11	Appelez-nous	-
019	NLA		Screw (m12x80)	11	Appelez-nous	-
020	23001305		Bolt M8x25	11	Appelez-nous	-
021	23001303		Nut (m12)	11	Appelez-nous	-
022	23001265		Washer (8)	11	Appelez-nous	-
023	23001253		Drain Tee	11	Appelez-nous	-
024	23003529		Bar, Tightening	11	Appelez-nous	-
025	NLA		Nut (m12)	11	Appelez-nous	-
