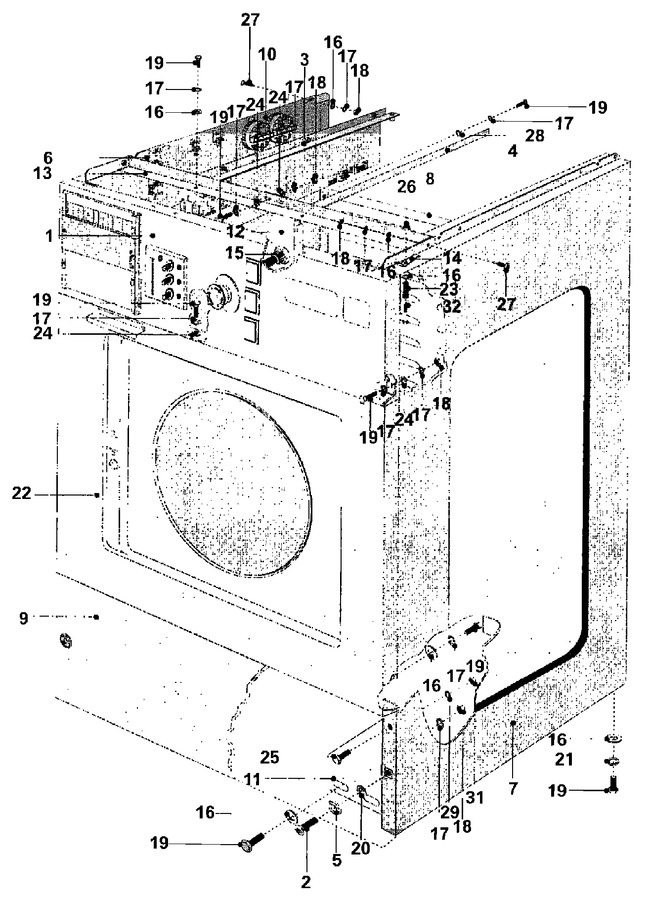

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003558 | Panel, Control | 11 |
|
- | ||||
| 001 | 23003559 | Facia, Control Panel | 11 |
|
- | ||||
| 002 | 23003478 | Screw (m6x50) | 11 |
|
$ 5.27 | ||||
| 003 | 23003467 | Box, Electrical Components | 11 |
|
- | ||||
| 004 | 23003468 | Holder, Soap Hopper | 11 |
|
- | ||||
| 005 | 23001337 | Washer, Finishing | 11 |
|
- | ||||
| 006 | 23003469 | Panel, Side (lt) | 11 |
|
- | ||||
| 007 | 23003470 | Panel, Side (rt) | 11 |
|
- | ||||
| 008 | 23003471 | Panel, Rear | 11 |
|
- | ||||
| 009 | 23003472 | Door, Access (lwr) | 11 |
|
- | ||||
| 010 | 23003473 | Panel, Electrical Components | 11 |
|
- | ||||
| 011 | 23003474 | Reinforcement, Side Panel | 11 |
|
- | ||||
| 012 | 23003475 | Holder, Switch | 11 |
|
- | ||||
| 013 | 23001511 | Box, Holder (electrical Comp.) | 11 |
|
- | ||||
| 014 | 23001442 | Cover, Hook | 11 |
|
- | ||||
| 015 | 23002775 | Switch, Vibration | 11 |
|
- | ||||
| 016 | 23001027 | Washer (dia. 12x6.5x1.6) | 11 |
|
- | ||||
| 017 | 23001028 | Lock Washer External Teethm6lu | 11 |
|
- | ||||
| 018 | 23001034 | Nut (m6) | 11 |
|
- | ||||
| 019 | 23001026 | Bolt (m6 X 16) | 11 |
|
- | ||||
| 020 | 23001338 | Washer, Fiber (dia. 15x7x3) | 11 |
|
- | ||||
| 021 | 23001158 | Washer M6 | 11 |
|
- | ||||
| 022 | 23003477 | Panel, Front | 11 |
|
- | ||||
| 023 | 23001444 | Bolt (m6x30) | 11 |
|
- | ||||
| 024 | 23001159 | Washer (dia. 14x8.6x1 Stnls)lu | 11 |
|
- | ||||
| 025 | 8169480 | Screw (m5x12) (Replaces: 23003480) | 11 |
|
$ 11.15 | ||||
| 026 | 23001310 | Nut, Self Locking (m6) | 11 |
|
- | ||||
| 027 | 23003476 | Screw (m6x16) | 11 |
|
- | ||||
| 028 | 23001027 | Washer (dia. 12x6.5x1.6) | 11 |
|
- | ||||
| 029 | 23004485 | Lock Washer (m5) Lu (Replaces: 23001333) | 11 |
|
- | ||||
| 030 | 23001445 | Cover, Spring | 11 |
|
- | ||||
| 031 | W10244602 | Nut (m5) Lu (Replaces: 23001334) | 11 |
|
$ 11.90 |
