SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Basket And Outer Shell Asy


04 - Inner Tub


05 - Front Counter Weight


06 - Trunnion And Bearing Asy


07 - Motor And Basket Pulley


08 - Idler Pulley


09 - Door


10 - Door Lock


11 - Soap Box


12 - Top Cover


13 - Control Panel


14 - Electrical Components


15 - Filling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004334		Frame,foundation	10	Appelez-nous	-
006	23002983		Damper (rd 12-2)	10			$ 392.15
007	23002984		Screw (m10x80)	10	Appelez-nous	-
008	23002356		Nut M10	10	Appelez-nous	-
009	23003788		Washer	10	Appelez-nous	-
015	23002986		Strip, Binding	10	Appelez-nous	-
016	23002985		Holder	10	Appelez-nous	-
018	23002475		Bolt (m8x20)	10			$ 13.66
019	NLA		Nut M8	10	Appelez-nous	-
021	23002435		Nut (m8)	10	Appelez-nous	-
022	23003769		Washer M8	10	Appelez-nous	-
023	23004221		Washer 8	10	Appelez-nous	-
025	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
027	23002988		Washer (10.5)	10	Appelez-nous	-
028	23002356		Nut M10	10	Appelez-nous	-
032	23002991		Screw	10			$ 225.63
034	23002992		Bushing, Suspension Bolt	10	Appelez-nous	-
036	23002993		Holder, Spring (plastic)	10	Appelez-nous	-
037	23002994		Hook, Suspension	10	Appelez-nous	-
038	23002692		Sleeve	10	Appelez-nous	-
039	23002995		Piece, Insertion	10	Appelez-nous	-
041	23002996		Spring	10			$ 38.45

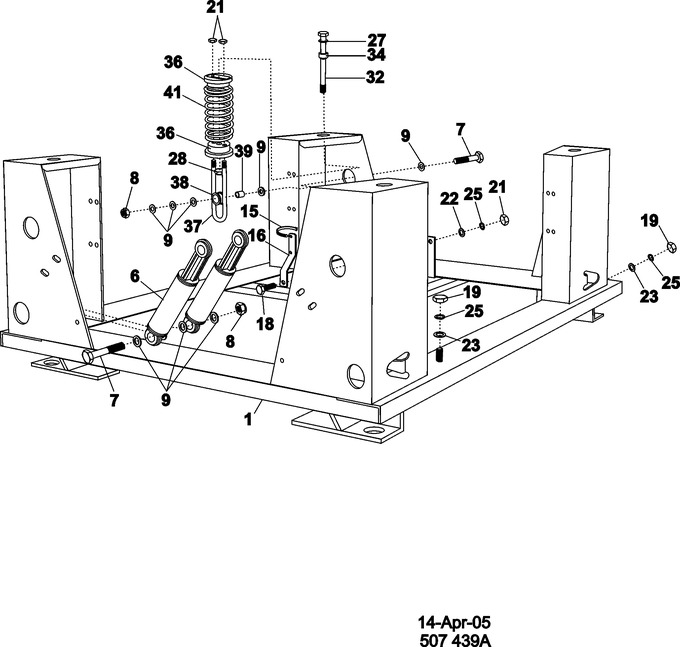

    View Diagram in Separate Window       Print Part List
