SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Basket And Outer Shell Asy


04 - Inner Tub


05 - Front Counter Weight


06 - Trunnion And Bearing Asy


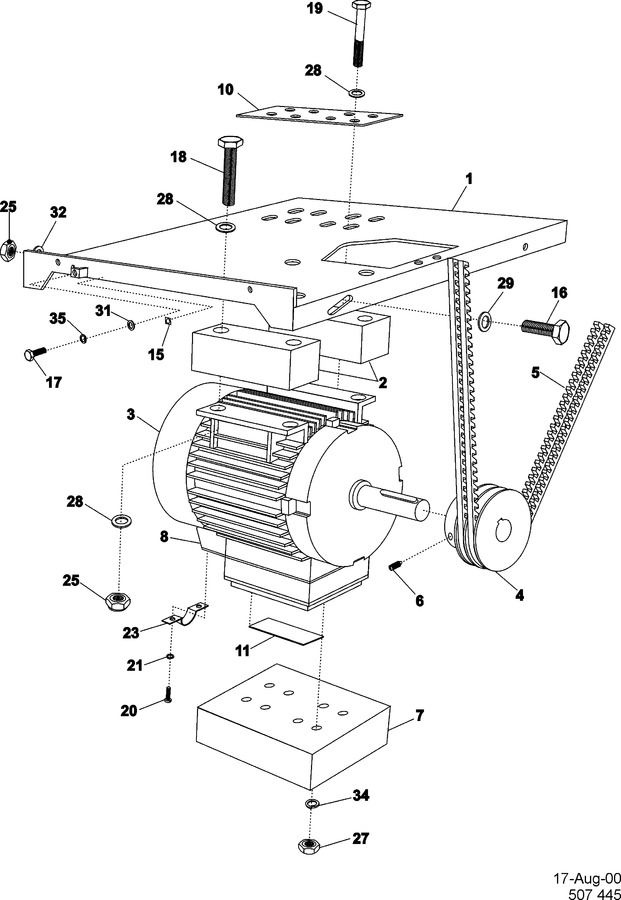

07 - Motor And Basket Pulley


08 - Idler Pulley


09 - Door


10 - Door Lock


11 - Soap Box


12 - Top Cover


13 - Control Panel


14 - Electrical Components


15 - Filling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004341		Plate, Drive Complete	10	Appelez-nous	-
002	23004348		Motor Washer	10	Appelez-nous	-
003	23004086		Motor 240v 3phase	10	Appelez-nous	-
004	23004018		Motor Pulley	10	Appelez-nous	-
005	23004342		V-belt	10			$ 138.27
006	23001658		Screw (m6x10)	10			$ 18.77
007	23004343		Wieght	10	Appelez-nous	-
008	23004344		Cable Holder Complete	10	Appelez-nous	-
011	23003944		Label, Motor	10	Appelez-nous	-
015	23002505		Plate, Earth	10	Appelez-nous	-
016	23002661		Screw (m12x35)	10	Appelez-nous	-
017	23001733		Screw (m6x10)	10	Appelez-nous	-
018	23004345		Bolt M12x100	10	Appelez-nous	-
019	23004346		Bolt M8x50	10	Appelez-nous	-
020	23002423		Screw (m4 X 10)	10	Appelez-nous	-
021	23004347		Washer 4	10	Appelez-nous	-
023	23004021		Cable Socket	10	Appelez-nous	-
025	NLA		Nut (m12)	10	Appelez-nous	-
027	23002435		Nut (m8)	10	Appelez-nous	-
028	23003769		Washer M8	10	Appelez-nous	-
029	23002657		Washer (13)	10	Appelez-nous	-
031	23003767		Washer Brass	10	Appelez-nous	-
032	23002658		Washer (12)	10	Appelez-nous	-
034	23002439		Washer, Spring Lock (8)	10	Appelez-nous	-
035	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91

    View Diagram in Separate Window       Print Part List
