SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Basket And Outer Shell Asy


04 - Inner Tub


05 - Front Counter Weight


06 - Trunnion And Bearing Asy


07 - Motor And Basket Pulley


08 - Idler Pulley


09 - Door


10 - Door Lock


11 - Soap Box


12 - Top Cover


13 - Control Panel


14 - Electrical Components


15 - Filling System

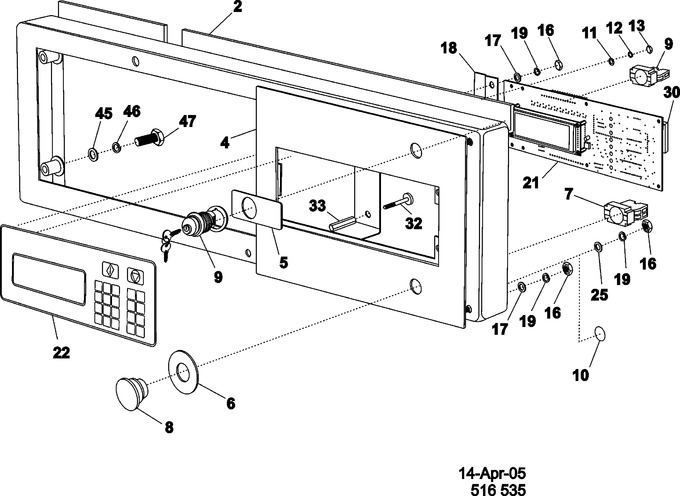

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23004364		Cover, Microprocessor	10	Appelez-nous	-
004	23004365		Panel, Facia	10	Appelez-nous	-
005	NLA		Plate (hoppers-pumps)	10	Appelez-nous	-
006	23002330		Label, Central Stop	10	Appelez-nous	-
007	23004137		Contact Block	10	Appelez-nous	-
008	23004136		Stop Button Emergency	10	Appelez-nous	-
009	23001082		Block, Programming Key	10	Appelez-nous	-
010	23002505		Plate, Earth	10	Appelez-nous	-
011	23002865		Lock Washer M3	10	Appelez-nous	-
012	NLA		Washer	10	Appelez-nous	-
013	23002958		Nut M3	10	Appelez-nous	-
016	23003666		Nut (m4)	10	Appelez-nous	-
017	23002438		Washer (m6)	10	Appelez-nous	-
018	23003871		Bracket, Z	10	Appelez-nous	-
019	23002400		Washer	10	Appelez-nous	-
021	23003991		Mcg Controller	10	Appelez-nous	-
022	23004133		Key Board, Full Control	10	Appelez-nous	-
025	23002129		Washer (m4)	10	Appelez-nous	-
030	23003992		Mcg Eeprom Chip Lu	10	Appelez-nous	-
032	23003872		Screw, Thumb	10	Appelez-nous	-
033	23003873		Sleeve	10	Appelez-nous	-
045	23003778		Washer 12	10	Appelez-nous	-
046	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
047	23002649		Screw (m6x10)	10	Appelez-nous	-
