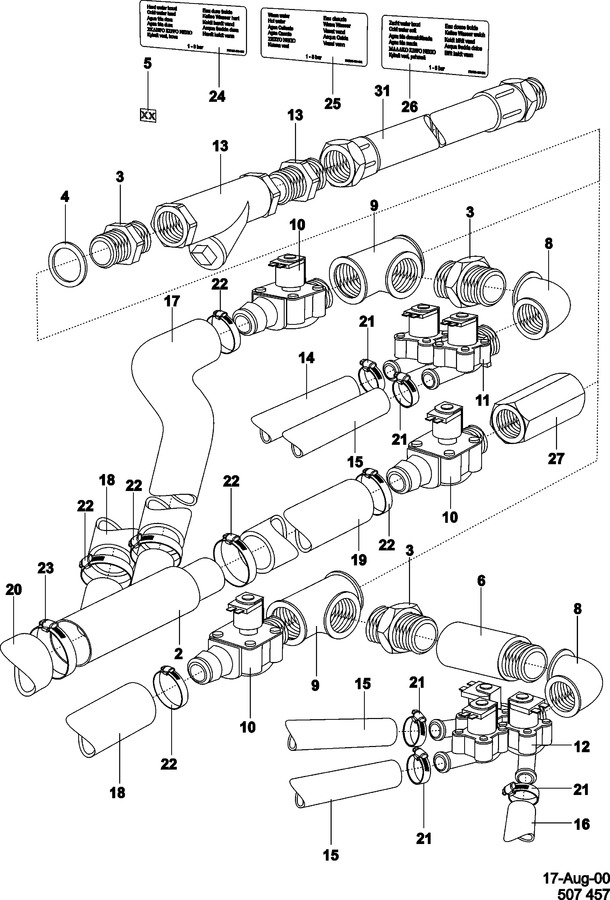

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23003162		System, Filling	10	Appelez-nous	-
002	23003163		Tube, Connection	10	Appelez-nous	-
003	23001482		Nipple (3/4`` Pipe Thread)	10			$ 747.91
004	NLA		Washer	10	Appelez-nous	-
005	NLA		Plate, Index	10	Appelez-nous	-
006	23001484		Extension, Brass Pipe Thread	10	Appelez-nous	-
008	23001756		Elbow (3/4``)	10	Appelez-nous	-
009	23001485		Tee, 3/4`` Pipe Thread (brass)	10	Appelez-nous	-
010	23002071		Valve, Inlet (1-way 3/4``)	10	Appelez-nous	-
010	23004368		Connector	10	Appelez-nous	-
011	23003875		Valve, 2 Way	10			$ 57.93
012	23003876		Valve 3-way	10	Appelez-nous	-
013	23003410		Steam Filter 3/4``	10	Appelez-nous	-
014	23001507		Waterhose (green)	10	Appelez-nous	-
015	23001507		Waterhose (green)	10	Appelez-nous	-
016	23001507		Waterhose (green)	10	Appelez-nous	-
017	23001740		Hose (19x27)	10	Appelez-nous	-
018	23001740		Hose (19x27)	10	Appelez-nous	-
019	23001740		Hose (19x27)	10	Appelez-nous	-
020	23002755		Hose	10	Appelez-nous	-
021	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
022	WP616099		Clamp, Hose (20-32)   (Replaces: 23001262)	10		Immediately	$ 7.03
023	WP616099		Clamp, Hose (32-50)   (Replaces: 23001261)	10		Immediately	$ 7.03
024	23001471		Sticker, Cold Soft Water	10			$ 1,387.22
025	23001469		Sticker, Hot Water	10			$ 1,212.53
026	NLA		Sticker, Cold Hard Water	10	Appelez-nous	-
027	NLA		Ontube	10	Appelez-nous	-
031	23001523		Hose, Connection	10	Appelez-nous	-
