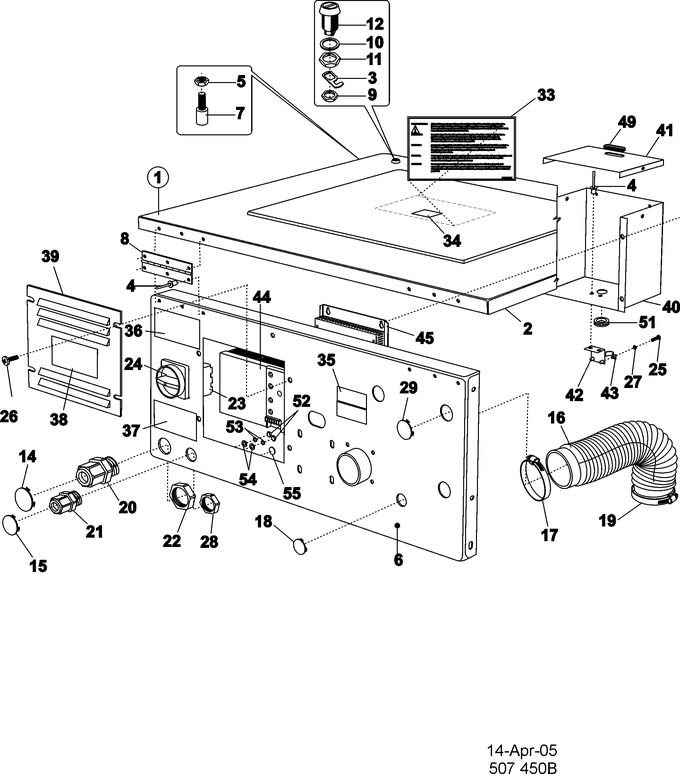

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23004353 | Cover, Top Complete | 10 |
|
- | ||||
| 002 | 23004354 | Cover, Top | 10 |
|
- | ||||
| 003 | 23002451 | Pawl | 10 |
|
- | ||||
| 004 | 23004105 | Rivet 4x6,3 | 10 |
|
- | ||||
| 005 | 23002502 | Nut (m4) | 10 |
|
- | ||||
| 006 | 23004355 | Cover, Valves Complete | 10 |
|
- | ||||
| 007 | NLA | Pin, Guiding | 10 |
|
- | ||||
| 008 | 23004103 | Hinge | 10 |
|
- | ||||
| 009 | 23001011 | Nut | 10 |
|
- | ||||
| 010 | 23001007 | Washer, Fiber | 10 |
|
- | ||||
| 011 | 23001008 | Lock Nut (large) | 10 |
|
$ 186.62 | ||||
| 012 | 23001006 | Lock, Top Panel | 10 |
|
- | ||||
| 014 | 23003997 | Plug, Hole | 10 |
|
- | ||||
| 015 | 23002795 | Plug | 10 |
|
- | ||||
| 016 | 23003042 | Hose, Rubber | 10 |
|
- | ||||
| 017 | WP616099 | Clamp, Hose (32-50) (Replaces: 23001261) | 10 |
|
Immediately | $ 7.03 | |||
| 018 | 23002795 | Plug | 10 |
|
- | ||||
| 019 | 23001256 | Clamp, Hose (60-80) | 10 |
|
- | ||||
| 020 | 23002211 | Swivel, Cable | 10 |
|
- | ||||
| 021 | 23002196 | Swivel, Cable | 10 |
|
- | ||||
| 022 | 23003138 | Nut | 10 |
|
$ 831.00 | ||||
| 023 | 23003501 | Switch, Main (32a) | 10 |
|
- | ||||
| 023 | 23003502 | Switch, Main (63a) | 10 |
|
- | ||||
| 024 | 23003497 | Knob | 10 |
|
- | ||||
| 025 | 23002423 | Screw (m4 X 10) | 10 |
|
- | ||||
| 026 | NLA | Bolt (m6x16) | 10 |
|
- | ||||
| 027 | 23002950 | Lock Washer M4 | 10 |
|
- | ||||
| 028 | 23002197 | Nut | 10 |
|
- | ||||
| 029 | 23001476 | Plug, Water Inlet | 10 |
|
$ 705.49 | ||||
| 033 | 23001550 | Label, Earth | 10 |
|
- | ||||
| 034 | 23002301 | Label, El.flash | 10 |
|
- | ||||
| 035 | 23002053 | Label, Warning Vent Out | 10 |
|
- | ||||
| 036 | NLA | Label, Warning El. Tension | 10 |
|
- | ||||
| 037 | 23001465 | Sticker, Electricity Warning | 10 |
|
- | ||||
| 038 | 23004356 | Label, Wait | 10 |
|
- | ||||
| 039 | 23004357 | Cover, Converter | 10 |
|
- | ||||
| 040 | 23004358 | Converter Box | 10 |
|
- | ||||
| 041 | 23004359 | Cover, Converter Box | 10 |
|
- | ||||
| 042 | 23004360 | Cable Holder | 10 |
|
- | ||||
| 043 | 23004021 | Cable Socket | 10 |
|
- | ||||
| 044 | 23004085 | Inverter Keb 2.2kw 3phase Lu | 10 |
|
- | ||||
| 044 | 23004361 | Cable, Communication | 10 |
|
- | ||||
| 045 | 23004362 | Filter, 208-240v | 10 |
|
- | ||||
| 046 | 23004363 | Brake Resistor 208-240v | 10 |
|
- | ||||
| 049 | 23002473 | Rubber, Protective | 10 |
|
$ 4.52 | ||||
| 051 | NLA | Passage, Cable (13 X 2) | 10 |
|
- | ||||
| 052 | 23002280 | Nut M6 | 10 |
|
- | ||||
| 053 | 23003767 | Washer Brass | 10 |
|
- | ||||
| 054 | 23002425 | Washer, Lock | 10 |
|
$ 473.30 | ||||
| 055 | 23002505 | Plate, Earth | 10 |
|
- |
