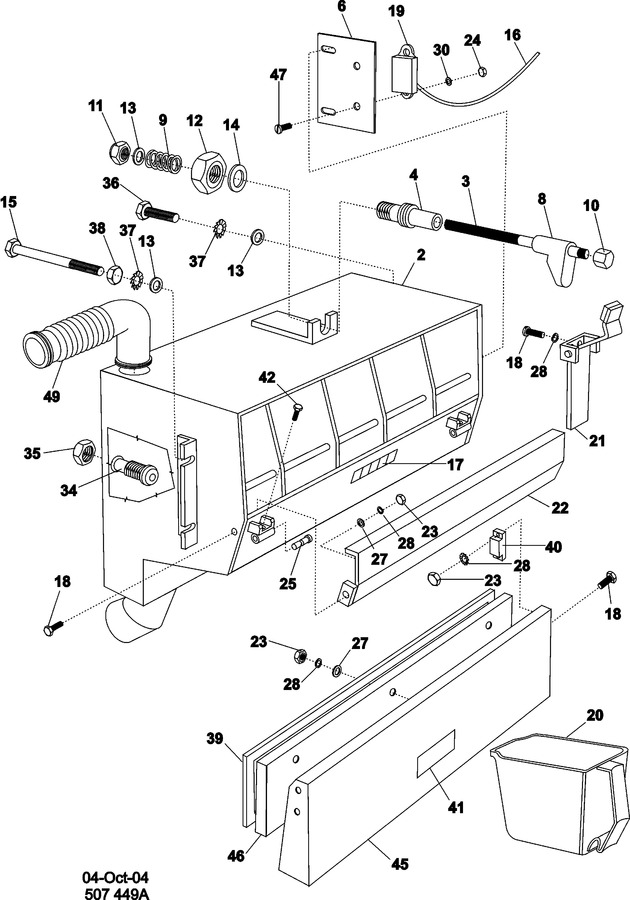

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003119 | Soap Box (complete) | 10 |
|
- | ||||
| 002 | 23003120 | Box, Soap | 10 |
|
- | ||||
| 003 | 23002748 | Screw | 10 |
|
- | ||||
| 004 | 23002747 | Pin | 10 |
|
- | ||||
| 006 | 23003121 | Holder | 10 |
|
- | ||||
| 008 | 23002749 | Lever | 10 |
|
- | ||||
| 009 | 23002010 | Spring | 10 |
|
- | ||||
| 010 | NLA | Nut (m6) | 10 |
|
- | ||||
| 011 | 23002471 | Nut | 10 |
|
- | ||||
| 012 | NLA | Nut (m12) | 10 |
|
- | ||||
| 013 | 23003778 | Washer 12 | 10 |
|
- | ||||
| 014 | 23002658 | Washer (12) | 10 |
|
- | ||||
| 015 | NLA | Bolt, Complete | 10 |
|
- | ||||
| 016 | 23002742 | Tube, Insulation | 10 |
|
- | ||||
| 017 | NLA | Label, Soap Box | 10 |
|
- | ||||
| 018 | 23001682 | Screw (m4x6) | 10 |
|
- | ||||
| 019 | 23001566 | Switch, Magnetic | 10 |
|
- | ||||
| 020 | 23002135 | Cup, Soap Box | 10 |
|
- | ||||
| 021 | NLA | Overseal | 10 |
|
- | ||||
| 022 | 23002737 | Cover | 10 |
|
- | ||||
| 023 | 23002652 | Nut (qty Of 4 = 1 Piece) | 10 |
|
- | ||||
| 024 | 23002500 | Washer, Lock | 10 |
|
- | ||||
| 025 | 23002736 | Pin, Door | 10 |
|
- | ||||
| 027 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 028 | NLA | Washer | 10 |
|
- | ||||
| 030 | NLA | Washer | 10 |
|
- | ||||
| 034 | 23002738 | Nozzle | 10 |
|
- | ||||
| 035 | 23002739 | Nut | 10 |
|
- | ||||
| 036 | 23002423 | Screw (m4 X 10) | 10 |
|
- | ||||
| 037 | 23002400 | Washer | 10 |
|
- | ||||
| 038 | 23002651 | Nut (m6) | 10 |
|
- | ||||
| 039 | NLA | Sealing | 10 |
|
- | ||||
| 040 | 23001668 | Contact, Magnetic | 10 |
|
- | ||||
| 041 | 23002134 | Shield (``do Not Open``) | 10 |
|
- | ||||
| 042 | NLA | Screw (m4x6) | 10 |
|
- | ||||
| 045 | 23003231 | Cover, Soap Box (complete) | 10 |
|
- | ||||
| 046 | 23002751 | Cover, Insert | 10 |
|
- | ||||
| 047 | 23002717 | Screw (m3x6) | 10 |
|
- | ||||
| 049 | NLA | Elbow | 10 |
|
- |
