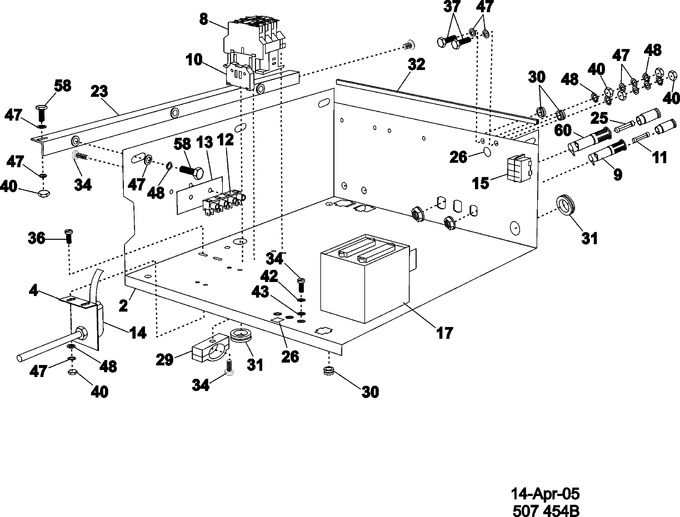

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
002	23004366		Switchboard, Complete	10	Appelez-nous	-
004	NLA		Holder, Vibration Switch	10	Appelez-nous	-
008	23003750		Contactor Lc1 Do9	10	Appelez-nous	-
009	23001462		Holder, Fuse	10	Appelez-nous	-
010	23002110		Terminal Wago	10			$ 242.60
011	WP23001508		Fuse (1a)   (Replaces: 23002918)	10			$ 48.21
012	23001113		Connector Housing (4 Pole)	10	Appelez-nous	-
013	23001115		Insulation Paper	10	Appelez-nous	-
014	23002775		Switch, Vibration	10	Appelez-nous	-
015	23004367		Indication Lamp, White	10	Appelez-nous	-
017	23003708		Transformer (250va)control Brd	10	Appelez-nous	-
023	NLA		Holder (complete)	10	Appelez-nous	-
025	WP22001555		Fuse 1a 6x32   (Replaces: 23003385)	10		Immediately	$ 27.33
026	23002505		Plate, Earth	10	Appelez-nous	-
029	23002428		Clip, Cable	10	Appelez-nous	-
030	NLA		Bushing, Rubber	10	Appelez-nous	-
031	NLA		Passage, Cable (22x2)	10	Appelez-nous	-
032	23002473		Rubber, Protective	10			$ 4.52
034	23001748		Screw (m4x12)	10	Appelez-nous	-
036	23002649		Screw (m6x10)	10	Appelez-nous	-
037	23002806		Screw (m6 X 25)	10	Appelez-nous	-
040	23001515		Nut (m6)	10	Appelez-nous	-
042	23003955		Washer	10	Appelez-nous	-
043	23002111		Washer (4)	10		Immediately	$ 221.87
047	23003767		Washer Brass	10	Appelez-nous	-
048	23002425		Washer, Lock	10			$ 473.30
058	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
060	23002210		Holder, Fuse	10	Appelez-nous	-
