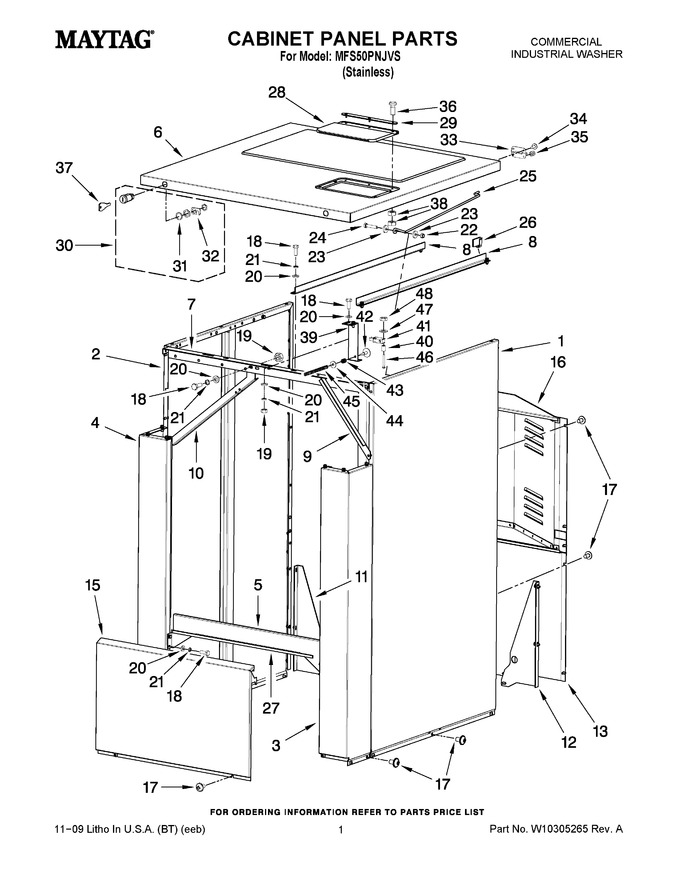

| 1 | W10286276 | Right Side Panel Complete |
|
- | |||||
| 2 | W10286277 | Left Side Panel Complete |
|
- | |||||
| 3 | W10286278 | Right Frontcorner Complete |
|
- | |||||
| 4 | W10286279 | Left Front Corner Complete |
|
- | |||||
| 5 | W10286280 | Service Panelholder |
|
- | |||||
| 6 | W10286281 | Top Cover Complete |
|
- | |||||
| 7 | W10286282 | Top Cabinet Reinforcement |
|
- | |||||
| 8 | 23003885 | Front To Back Reinforcement |
|
- | |||||
| 9 | W10286283 | Right Cabinet Reinforcement |
|
- | |||||
| 10 | W10286284 | Left Cabinet Reinforcement |
|
- | |||||
| 11 | W10286285 | Left Cabinet Stiffner |
|
- | |||||
| 12 | W10286286 | Right Cabinet Stiffner |
|
- | |||||
| 13 | W10286287 | Lower Back Panel |
|
- | |||||
| 15 | 14227295 | Front Access Panel |
|
- | |||||
| 16 | W10286288 | Trunion Cover |
|
- | |||||
| 17 | W10286289 | Bolt M6x10 |
|
- | |||||
| 18 | 23004114 | Bolt M6x16 (Replaces: 23002461) |
|
- | |||||
| 19 | 23001312 | Nut M6 |
|
- | |||||
| 20 | 23002756 | Washer M6.4 |
|
- | |||||
| 21 | 20007283 | Washer M6 (Replaces: 23002440) |
|
$ 504.91 | |||||
| 22 | 23001310 | Nut M6 |
|
- | |||||
| 23 | 23001309 | Washer M6 |
|
- | |||||
| 24 | 23002463 | Bolt M6x30 |
|
- | |||||
| 25 | 23001330 | Prop Rod |
|
- | |||||
| 26 | 23002454 | Self Sticking Cable Clip |
|
- | |||||
| 27 | W10286290 | Foam-seal |
|
- | |||||
| 28 | 23002111 | Dispenser Cover (Replaces: 23001003) |
|
Immediately | $ 221.87 | ||||
| 29 | 23003781 | Dispenser Cover Retainer |
|
- | |||||
| 30 | 23001006 | Top Cover Lock |
|
- | |||||
| 31 | 23001007 | Washer M21x27x1 |
|
- | |||||
| 32 | 23001009 | Locking Cam |
|
- | |||||
| 33 | 23004103 | Hinge |
|
- | |||||
| 34 | W10304856 | Bolt M4x12 |
|
- | |||||
| 35 | 23002467 | Rivet M4x6.6 |
|
- | |||||
| 36 | 23001012 | Bolt M4x12 |
|
$ 13.48 | |||||
| 37 | 23002673 | Lock Key |
|
$ 1,792.62 | |||||
| 38 | 23002652 | Nut M4 |
|
- | |||||
| 39 | W10286292 | Out Of Balance Switch Bracket |
|
- | |||||
| 40 | 23003902 | Spacer |
|
- | |||||
| 41 | 23003899 | Out Of Balance Switch |
|
- | |||||
| 42 | 23003904 | Spring Retainer |
|
- | |||||
| 43 | 23003900 | Spring 15mm |
|
- | |||||
| 44 | 23002504 | Washer M4 |
|
- | |||||
| 45 | W10286294 | Out Of Balance Sensor Spring |
|
- | |||||
| 46 | 23002906 | Bolt M3x25 |
|
- | |||||
| 47 | 23003654 | Washer M3.2 |
|
- | |||||
| 48 | 23002958 | Nut M3 |
|
- |
