Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10286262 Front Counter Weight Appelez-nous -
2 W10286263 Outer Tub Support Plate Appelez-nous -
3 W10286264 Tub Front Extension Appelez-nous -
4 W10286265 Top Counter Weight (rear) Appelez-nous -
5 W10286266 Top Counter Weight (front) Appelez-nous -
6 W10286267 Small Support Weight Appelez-nous -
7 23003062 Lower Counter Weight Appelez-nous -
8 23004343 Large Support Weight Appelez-nous -
9 W10286269 Left Shock Absorber Mtg Plate Appelez-nous -
10 W10286270 Right Shock Absorber Mtg Plate Appelez-nous -
11 W10286271 Out Of Balance Sensor Appelez-nous -
12 23003051 Support Appelez-nous -
13 23002473 Outer Tub Seal Special Order $ 4.52

14 23001117 Sensor Bushing Appelez-nous -
15 23003839 Guard Retainer Appelez-nous -
16 23003840 Guard Retainer Appelez-nous -
17 W10286272 Cable Retainer Appelez-nous -
18 W10286274 Finger Guard Appelez-nous -
19 14227292 Guard Appelez-nous -
20 W10286275 Bolt M10x100 Appelez-nous -
21 23004114 Bolt M6x16   (Replaces: 23002461) Appelez-nous -
22 23002462 Bolt M6x20 Special Order $ 5.14

23 23002646 Bolt M8x40 Appelez-nous -
24 23004198 Bolt M8x50 Appelez-nous -
25 23002987 Bolt M10x30 Appelez-nous -
26 23002984 Bolt M10x80 Appelez-nous -
27 23002669 Bolt M12x30 In-Stock Immediately $ 741.30

28 23001014 Nut M4 Appelez-nous -
29 23001312 Mut M6 Appelez-nous -
30 23001266 Nut M8 Appelez-nous -
31 DC60-50145A Nut M10   (Replaces: 23001661) Special Order $ 2.39

32 23003676 Nut M12 Appelez-nous -
33 23001312 Nut M6 Appelez-nous -
34 23002400 Washer M4 Appelez-nous -
35 23002756 Washer M6.4 Appelez-nous -
36 23003788 Washer M10.5 Appelez-nous -
37 23002424 Washer M6.4 Appelez-nous -
38 20007283 Washer M6   (Replaces: 23002440) Special Order $ 504.91

39 23002358 Washer M8 Appelez-nous -
40 23002654 Washer M10 Appelez-nous -
41 23002658 Washer M12 Appelez-nous -
42 23002425 Locker Washer M6 Special Order $ 473.30


    View Diagram in Separate Window     Print Icon   Print Part List

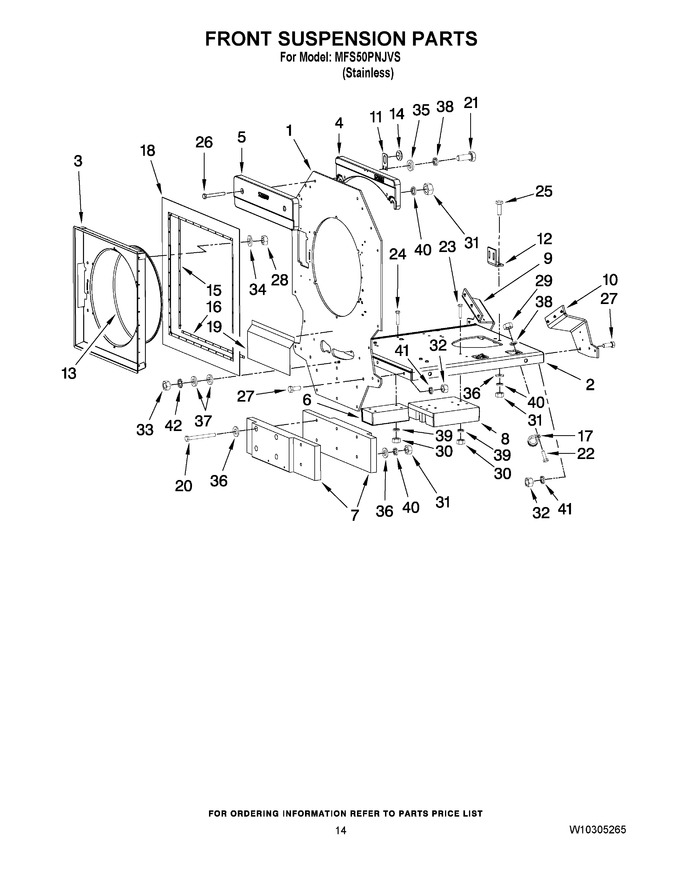

Diagram for MFS50PNJVS
