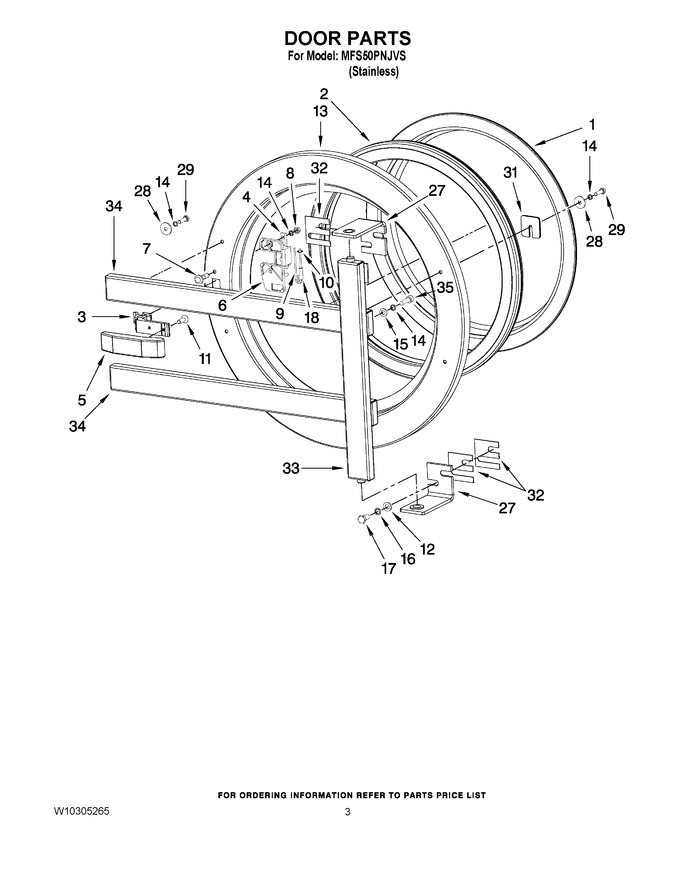

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004109		Door Glass		Appelez-nous	-
2	W10292561		Door Seal		Appelez-nous	-
3	23003858		Door Handle		Appelez-nous	-
4	23001168		Door Latch Pin		Appelez-nous	-
5	23003860		Door Handle Cover		Appelez-nous	-
6	23001370		Door Latch Plate		Appelez-nous	-
7	23001175		Bolt M6x20		Appelez-nous	-
8	23001312		Nut M6		Appelez-nous	-
9	23001169		Door Latch U Spring		Appelez-nous	-
10	23002499		Spring Retaining Clip		Appelez-nous	-
11	23004113		Bolt M4x12		Appelez-nous	-
12	23001608		Washer M8.4		Appelez-nous	-
13	W10286307		Door Frame		Appelez-nous	-
14	23001158		Washer M6		Appelez-nous	-
15	23002424		Washer M6.4		Appelez-nous	-
16	23002727		Washer M8		Appelez-nous	-
17	23002421		Bolt M8x16				$ 1,050.80
18	W10304861		Tube 6x1		Appelez-nous	-
27	W10286309		Upper Hinge Complete		Appelez-nous	-
27	W10286308		Hinge Complete		Appelez-nous	-
28	23002265		Fender Washer		Appelez-nous	-
29	23002462		Bolt M6x20				$ 5.14
31	W10286310		Shim		Appelez-nous	-
32	W10304862		Shim		Appelez-nous	-
33	W10286311		Vertical Door Beam		Appelez-nous	-
34	W10286312		Horizontal Door Beam		Appelez-nous	-
35	W10286313		Bolt M6x20		Appelez-nous	-
