01 - Cabinet Panel Parts


02 - Door Parts


03 - Door Lock Parts


04 - Control Panel

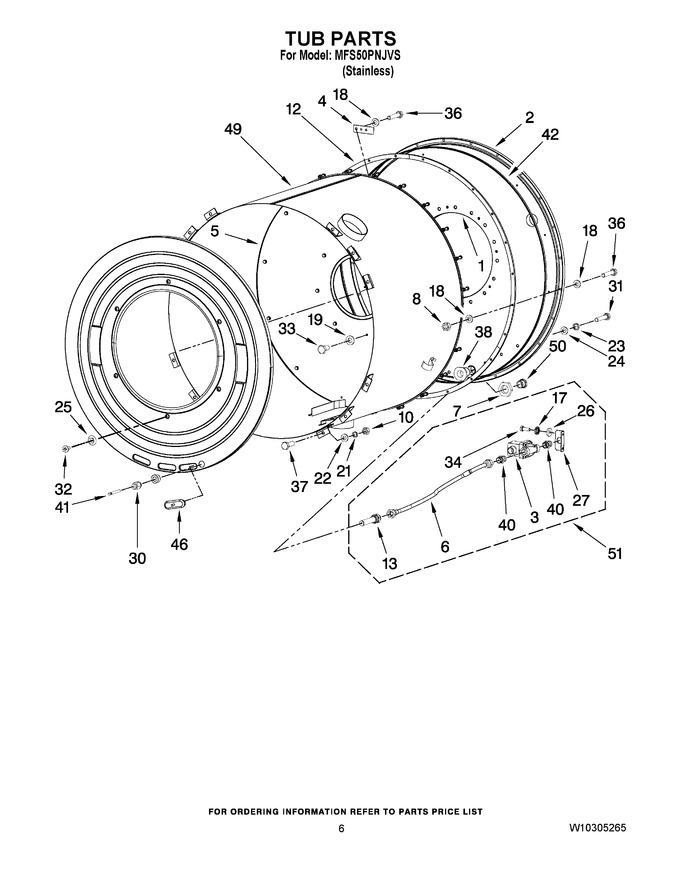

05 - Tub Parts


06 - Soap Hopper And Water System Parts


07 - Rear Panel Parts


08 - Drum Parts


09 - Drive Parts


10 - Frame Parts


11 - Front Suspension Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10286314		Rear Tub Plate		Appelez-nous	-
2	W10286315		Rear Plate Of Tub Complete		Appelez-nous	-
3	W10286316		Soleniod		Appelez-nous	-
4	23003791		Harness Mtg Plate		Appelez-nous	-
5	W10286317		Foil		Appelez-nous	-
6	23003906		Steam Hose		Appelez-nous	-
7	23003059		Bushing Nut		Appelez-nous	-
8	23001312		Nut M6		Appelez-nous	-
10	23001266		Nut M8		Appelez-nous	-
12	W10286319		Mtg Ring		Appelez-nous	-
13	W10286320		Steam Injector		Appelez-nous	-
17	20007283		Washer M6   (Replaces: 23002440)				$ 504.91
18	23002756		Washer M6.4		Appelez-nous	-
19	23002281		Washer M6.4		Appelez-nous	-
21	23002358		Washer M8		Appelez-nous	-
22	23001203		Washer M8.4		Appelez-nous	-
23	23002654		Washer M10		Appelez-nous	-
24	23003788		Washer M10.5		Appelez-nous	-
25	23001204		Washer M5				$ 278.89
26	23001309		Washer M6		Appelez-nous	-
27	W10286323		Steam Valve Bracket		Appelez-nous	-
30	23003807		Thermostat Sensor Holder		Appelez-nous	-
31	23002987		Bolt M10x30		Appelez-nous	-
32	23001777		Bolt M4x8		Appelez-nous	-
33	23002353		Bolt M6x12		Appelez-nous	-
34	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
36	23002463		Bolt M6x30		Appelez-nous	-
37	23001305		Bolt M8x25		Appelez-nous	-
38	23003056		Bushing		Appelez-nous	-
40	23003907		Bushing		Appelez-nous	-
41	23003964		Temperature Sensor		Appelez-nous	-
42	23003058		Outer Tub Seal		Appelez-nous	-
46	23001594		Heating Element Hole Plug		Appelez-nous	-
49	WPW10286324		Tub Complete   (Replaces: W10286324)				$ 2,162.46
50	23002480		Hole Plug		Appelez-nous	-
51	WPW10553978		Steam Kit   (Replaces: W10308483)				$ 1,627.26
