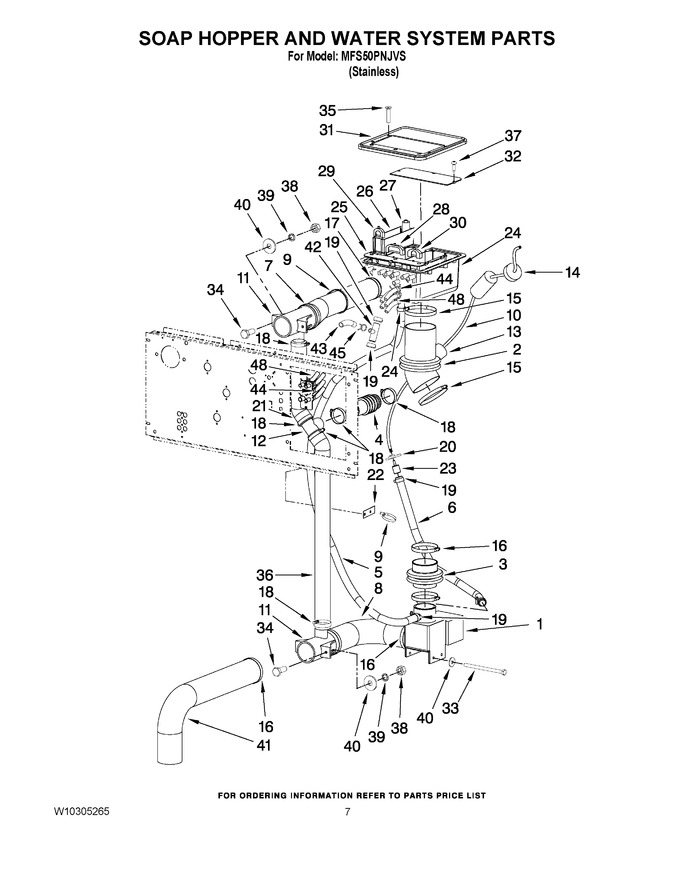

06 - Soap Hopper And Water System Parts


07 - Rear Panel Parts


08 - Drum Parts


09 - Drive Parts


10 - Frame Parts


11 - Front Suspension Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23001244		Drain Valve				$ 2,768.25
2	W10286335		Hopper To Tub Hose		Appelez-nous	-
3	23001245		Tub To Drain Hose				$ 59.66
4	23001250		Corregated Vent Hose		Appelez-nous	-
5	W10286336		Hopper To Drain Valve Hose		Appelez-nous	-
6	W10286337		Lower Pressure Switch Hose		Appelez-nous	-
7	W10286338		Hopper To T-hose		Appelez-nous	-
8	W10286339		Drain Valve Outlet Hose		Appelez-nous	-
9	W10286340		Clamp		Appelez-nous	-
10	23001252		Upper Pressure Switch Hose		Appelez-nous	-
11	23001253		Large T		Appelez-nous	-
12	23001255		Small T		Appelez-nous	-
13	23004491		Larger Bumper		Appelez-nous	-
14	23003486		Small Bumper		Appelez-nous	-
15	WP696392		Hose Clamp   (Replaces: 23001025)				$ 7.31
16	WP696392		Hose Clamp   (Replaces: 696392)				$ 7.31
17	34001289		Hose Clamp				$ 26.20
18	23001750		Hose Clamp		Appelez-nous	-
19	HS24		Hose Clamp   (Replaces: 616099)			Immediately	$ 1.22
20	WP596669		Hose Clamp   (Replaces: 596669)			Immediately	$ 7.56
21	W10286341		Upper Overflow Hose		Appelez-nous	-
22	23003791		Wire Harness Mtg Plate		Appelez-nous	-
23	23001260		Pressure Switch Hose Fitting		Appelez-nous	-
24	23001016		External Soap Hopper		Appelez-nous	-
25	23001017		Soap Hopper Insert		Appelez-nous	-
26	23001019		Fabric Softner Insert		Appelez-nous	-
27	23001018		Syphon Hose		Appelez-nous	-
28	23001022		Mainwash Diverter		Appelez-nous	-
29	23001023		Fabric Softner Diverter		Appelez-nous	-
30	23001021		Prewash Diverter		Appelez-nous	-
31	23001015		Soap Hopper Gasket		Appelez-nous	-
32	23001020		Insert Retainer		Appelez-nous	-
33	23002908		Bolt M8x120		Appelez-nous	-
34	23001264		Bolt M8x20		Appelez-nous	-
35	23003484		Bolt M5x16				$ 5.27
36	W10286342		Lower Overflow Hose		Appelez-nous	-
37	23003782		Screw M3.5x13				$ 3.66
38	23001266		Nut M8		Appelez-nous	-
39	23001265		Washer M8		Appelez-nous	-
40	23002437		Washer M8		Appelez-nous	-
41	23002015		Drain Elbow		Appelez-nous	-
42	W10304864		T Fitting		Appelez-nous	-
43	W10223170		T Fitting To Rear Panel Hose		Appelez-nous	-
44	WP596669		Hose Clamp   (Replaces: W10286344)			Immediately	$ 7.56
45	WP596669		Hose Clamp   (Replaces: W10286346)			Immediately	$ 7.56
48	23002193		Hose		Appelez-nous	-
NI	23004242		Complete Soaphopper		Appelez-nous	-
NI	W10286348		Drain Valve Wire Harness		Appelez-nous	-
