Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 23004339 Drum Appelez-nous -
2 23003846 Bearing Housing Appelez-nous -
3 23003073 Front Bearing Appelez-nous -
4 23003076 Rear Bearing Appelez-nous -
5 23003842 Seal Retainer Appelez-nous -
6 W10286325 Seal Appelez-nous -
7 23003845 Seal Plate Appelez-nous -
8 23003850 Radial Seal Appelez-nous -
9 23003849 Radial Seal Ring Appelez-nous -
10 WP23003843 Larger V-ring   (Replaces: 23003843) Special Order $ 472.05

11 23003069 Small V-ring Appelez-nous -
12 23003070 O-ring Appelez-nous -
13 23003848 Grease Retainer Appelez-nous -
14 23003844 Bearing Cone Appelez-nous -
15 23003072 Inner Snap Ring Appelez-nous -
16 23003852 Larger Outer Snap Ring Appelez-nous -
17 23003847 Small Outer Snap Ring Appelez-nous -
21 W10286327 Trunion Appelez-nous -

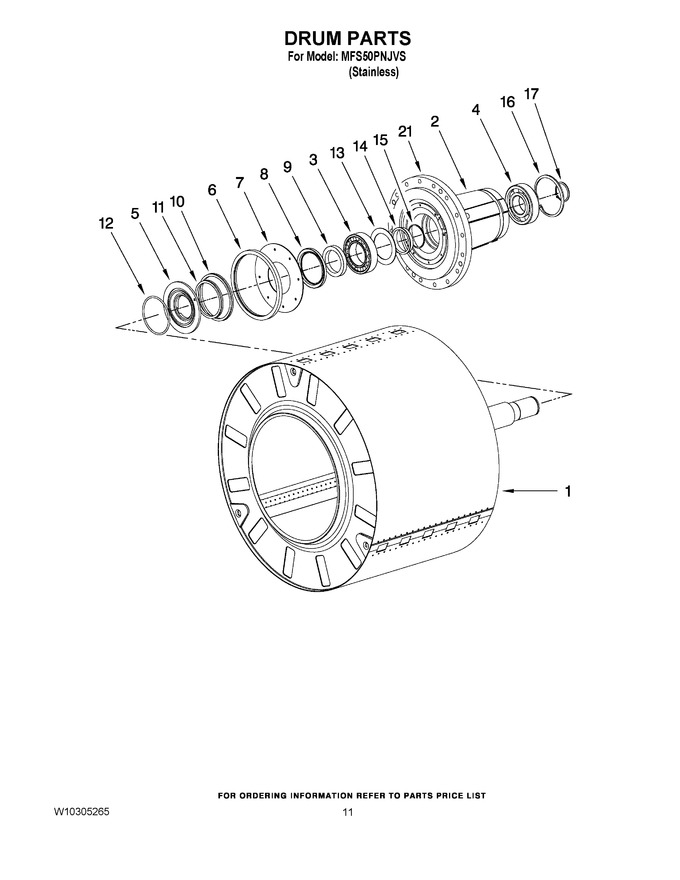

    View Diagram in Separate Window     Print Icon   Print Part List
