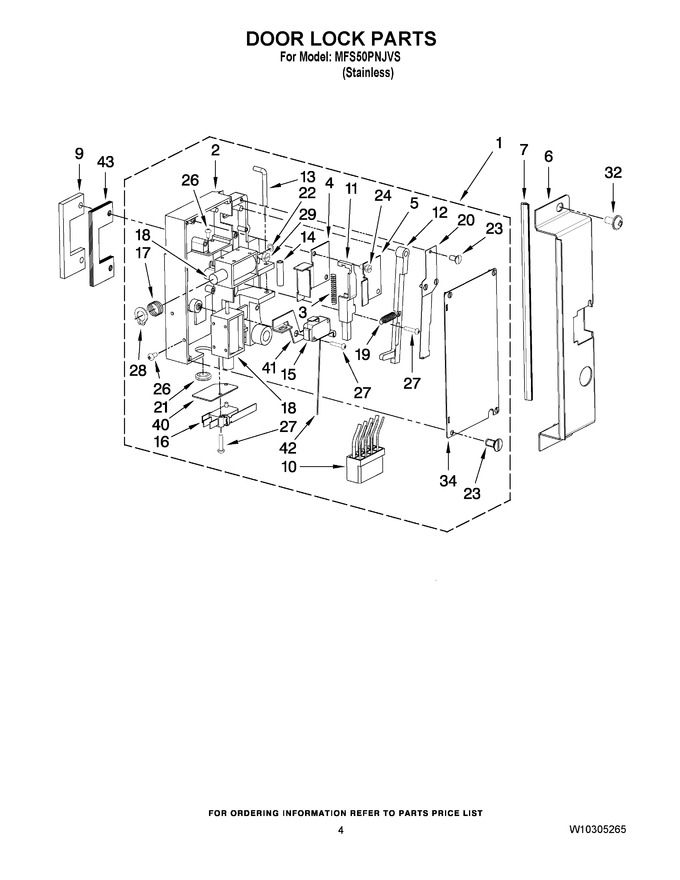

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23003861		Door Lock Complete		Appelez-nous	-
2	Y23002898		Door Lock Housing		Appelez-nous	-
3	W10286302		Coil Spring		Appelez-nous	-
4	23003107		Lock Hookmtg Plate Bottom		Appelez-nous	-
5	23003108		Lock Hook Mtg Plate Top		Appelez-nous	-
6	23003864		Outer Door Lock Cover		Appelez-nous	-
7	23002473		Door Lock Guard				$ 4.52
9	W10286304		Door Lock Block		Appelez-nous	-
10	W10286305		Door Lock Wire Harness Mcg Ac		Appelez-nous	-
11	23001140		Small Lock Hook		Appelez-nous	-
12	23002899		Actuator Arm		Appelez-nous	-
13	23001142		Latch Roller Pin		Appelez-nous	-
14	23001143		Latch Roller		Appelez-nous	-
15	23002337		Door Locked Switch		Appelez-nous	-
16	23001145		Door Closed Switch		Appelez-nous	-
17	23002903		Soleniod Spring		Appelez-nous	-
18	23001146		Soleniod		Appelez-nous	-
19	23001148		Actuator Arm Spring		Appelez-nous	-
20	23001149		Leaf Spring		Appelez-nous	-
21	23002479		Rubber Grommet		Appelez-nous	-
22	23001136		Washer M5.1x3.3x0.1		Appelez-nous	-
23	23002869		Bolt M3x6		Appelez-nous	-
24	23003114		Bolt M4x8		Appelez-nous	-
26	23002869		Bolt M3x6		Appelez-nous	-
27	23001131		Bolt M3x14		Appelez-nous	-
28	23001137		Snap Ring		Appelez-nous	-
29	23003116		Bolt M5x30		Appelez-nous	-
32	23002722		Bolt M6x12		Appelez-nous	-
34	23004351		Door Lock Cover Plate		Appelez-nous	-
40	23003863		Door Closed Switch Plate		Appelez-nous	-
41	23002902		Emergency Opening Lever		Appelez-nous	-
42	23001152		Emergency Opening Cord			Immediately	$ 458.78
43	W10286306		Shims		Appelez-nous	-
