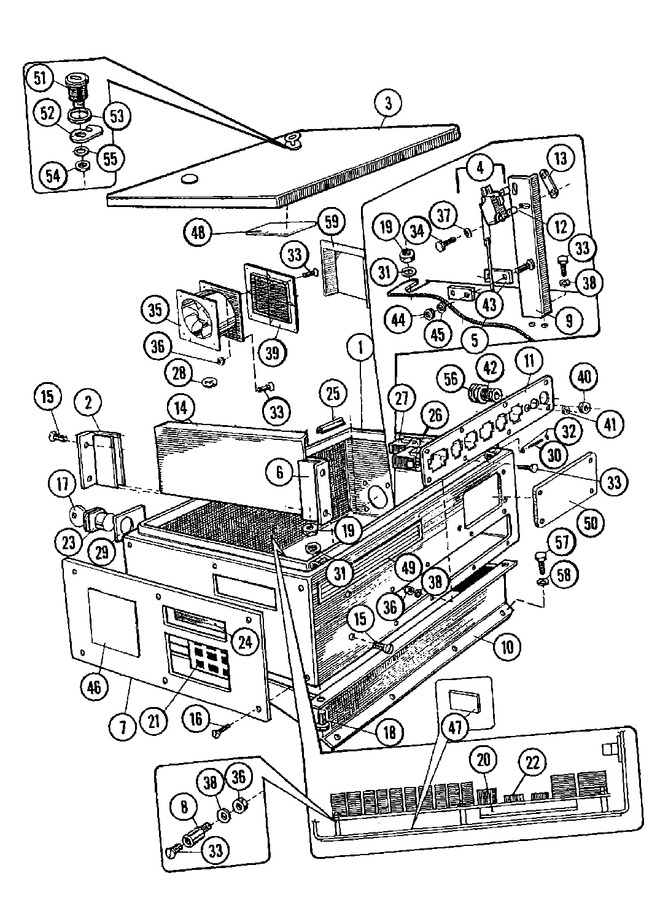

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Box, Microprocessor | 10 |
|
- | ||||
| 002 | 23001684 | Holder, Screening Plate (i) | 10 |
|
- | ||||
| 003 | NLA | Cover, Box (complete) | 10 |
|
- | ||||
| 004 | 23002077 | Switch, Out Of Balance | 10 |
|
- | ||||
| 005 | 23002158 | Plate, Mounting | 10 |
|
- | ||||
| 006 | 23001685 | Holder, Screening Plate (ii) | 10 |
|
- | ||||
| 007 | 23002159 | Panel, Face | 10 |
|
- | ||||
| 008 | 23002084 | Tube, Distance | 10 |
|
- | ||||
| 009 | 23002160 | Holder, Vibration Switch | 10 |
|
- | ||||
| 010 | 23002085 | Support, Control Box | 10 |
|
- | ||||
| 011 | NLA | Holder, Terminal Board | 10 |
|
- | ||||
| 012 | 23002086 | Washer, Microswitch | 10 |
|
- | ||||
| 013 | 23001805 | Nut, Microswitch | 10 |
|
- | ||||
| 014 | NLA | Plate, Screening | 10 |
|
- | ||||
| 015 | 23002162 | Bolt (m6x10) | 10 |
|
- | ||||
| 016 | NLA | Bolt (m4x15) | 10 |
|
- | ||||
| 017 | 23002219 | Device, Operating | 10 |
|
- | ||||
| 018 | NLA | Bolt (m8x15) | 10 |
|
- | ||||
| 019 | 23002034 | Nut (m8) | 10 |
|
- | ||||
| 020 | 23002201 | Programmer Mkii | 10 |
|
- | ||||
| 021 | 23001692 | Keyboard Mkii | 10 |
|
- | ||||
| 022 | 23003744 | Controller, Apl280ns V1.04 (english, Spanish) | 10 |
|
- | ||||
| 022 | 23003745 | Controller, Apl280ne V1.04 (english, French, German, And | 10 |
|
- | ||||
| 023 | 23001082 | Block, Programming Key | 10 |
|
- | ||||
| 024 | 23002163 | Hole, Inspection | 10 |
|
- | ||||
| 025 | 23001088 | Rubber Trim | 10 |
|
- | ||||
| 026 | 23001721 | Board, Terminal (amp 15 Poles) | 10 |
|
- | ||||
| 027 | 23001722 | Board, Terminal (amp 9 Poles) | 10 |
|
- | ||||
| 028 | NLA | Label, Earth | 10 |
|
- | ||||
| 029 | NLA | Label, Hoppers-pumps | 10 |
|
- | ||||
| 030 | 23001690 | Pin | 10 |
|
- | ||||
| 031 | 23001263 | Washer (8.4) | 10 |
|
- | ||||
| 032 | 23001056 | Ring, Spring (3.2) | 10 |
|
- | ||||
| 033 | 23001361 | Bolt (m4x16) | 10 |
|
- | ||||
| 034 | 23002092 | Bolt (m3x22) | 10 |
|
- | ||||
| 035 | 23002165 | Ventilator (only For Special Order) | 10 |
|
$ 297.78 | ||||
| 036 | 23001055 | Nut (m4) | 10 |
|
- | ||||
| 037 | 23001056 | Washer (3.2) | 10 |
|
- | ||||
| 038 | 23001708 | Washer | 10 |
|
- | ||||
| 039 | 23002166 | Grate, Air | 10 |
|
- | ||||
| 040 | 23001091 | Grommett, Rubber | 10 |
|
- | ||||
| 041 | 23002167 | Grommett, Rubber | 10 |
|
- | ||||
| 042 | 23002196 | Protector, Cable (rubber) | 10 |
|
- | ||||
| 043 | 23001712 | Weight, Adjustment | 10 |
|
- | ||||
| 044 | 23001053 | Nut (m3) | 10 |
|
- | ||||
| 045 | 23001054 | Washer (3) | 10 |
|
- | ||||
| 046 | 23002097 | Label, Program | 10 |
|
- | ||||
| 047 | 23002025 | Label, Electrostatic Sensitive | 10 |
|
- | ||||
| 048 | 23001550 | Label, Earth | 10 |
|
- | ||||
| 049 | 23002168 | Grate, Air (305x60x13) | 10 |
|
- | ||||
| 050 | 23002169 | Holder, Terminal Boards | 10 |
|
- | ||||
| 051 | 23001006 | Device, Locking | 10 |
|
- | ||||
| 052 | 23001009 | Hook, Locking | 10 |
|
- | ||||
| 053 | 23001008 | Nut (large) | 10 |
|
$ 186.62 | ||||
| 054 | 23001011 | Nut (small) | 10 |
|
- | ||||
| 055 | 23001007 | Washer | 10 |
|
- | ||||
| 056 | 23002197 | Nut | 10 |
|
- | ||||
| 057 | NLA | Bolt (8x16) | 10 |
|
- | ||||
| 058 | 23001608 | Washer (m8) Lu | 10 |
|
- | ||||
| 059 | 23002222 | Cover, Ventilator | 10 |
|
- |
