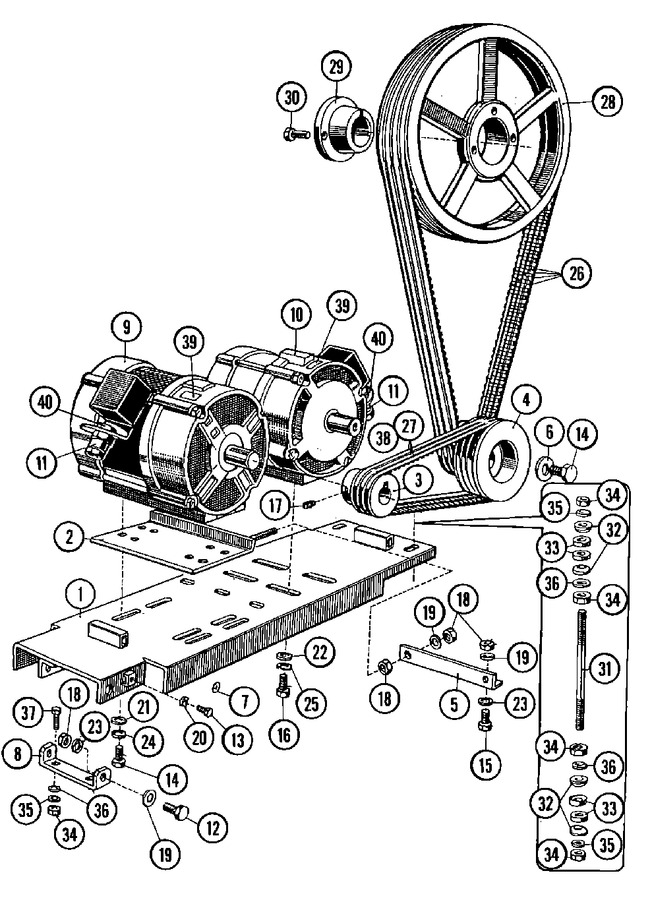

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001887		Support, Motor	10	Appelez-nous	-
001	NLA		Support, Motor	10	Appelez-nous	-
002	23001889		Washmotor, Adjusting Plate	10	Appelez-nous	-
002	NLA		Washmotor, Adjusting Plate	10	Appelez-nous	-
003	NLA		Washmotor, Pulley	10	Appelez-nous	-
004	23001273		Spinmotor, Pulley	10			$ 88.12
004	23003816		Spinmotor, Pulley	10	Appelez-nous	-
005	NLA		Support, Adjusting Screw	10	Appelez-nous	-
006	23001897		Washer, Safety	10	Appelez-nous	-
007	NLA		Label, Earth	10	Appelez-nous	-
008	NLA		Hinge, Motorsupport	10	Appelez-nous	-
009	23001899		Motor, Washing (208-240v)	10	Appelez-nous	-
010	23001901		Motor, Spin (240v)	10	Appelez-nous	-
011	23002196		Swivel, Cable	10	Appelez-nous	-
012	NLA		Bolt (m12x30)	10	Appelez-nous	-
013	23001904		Bolt (m6x10) Lu	10	Appelez-nous	-
014	23001662		Bolt (m10x30)	10	Appelez-nous	-
015	NLA		Bolt (m12x30)	10	Appelez-nous	-
016	23001264		Bolt M8x20	10	Appelez-nous	-
017	23001906		Bolt (m5x10)	10	Appelez-nous	-
018	23001303		Nut (m12)	10	Appelez-nous	-
019	23001292		Washer (13)	10	Appelez-nous	-
020	23001313		Washer (6.4)	10	Appelez-nous	-
021	NLA		Washer (10.5)	10	Appelez-nous	-
022	23001263		Washer (8.4)	10	Appelez-nous	-
023	23001419		Washer (12)	10	Appelez-nous	-
024	23001400		Washer (10)	10	Appelez-nous	-
025	23001265		Washer (8)	10	Appelez-nous	-
026	23001657		V-belt (2287mm)	10			$ 51.56
027	23001907		V-belt (spz962)	10	Appelez-nous	-
028	23001908		Pulley, Main Shaft	10	Appelez-nous	-
029	23001909		Cone, Pulley Fixation	10	Appelez-nous	-
030	23001910		Bolt (m12x60)	10	Appelez-nous	-
031	NLA		Frontscrew, Tub Adjusting	10	Appelez-nous	-
032	NLA		Washer	10	Appelez-nous	-
033	23001912		Washer	10	Appelez-nous	-
034	NLA		Nut (m16)	10	Appelez-nous	-
035	23001757		Washer (16)	10	Appelez-nous	-
036	NLA		Screw (m16x110)	10	Appelez-nous	-
037	NLA		Bolt (m16x30)	10	Appelez-nous	-
038	23002122		V-belt (xpz987)	10			$ 110.85
039	23002123		Label, Motor	10	Appelez-nous	-
040	23002197		Nut	10	Appelez-nous	-
