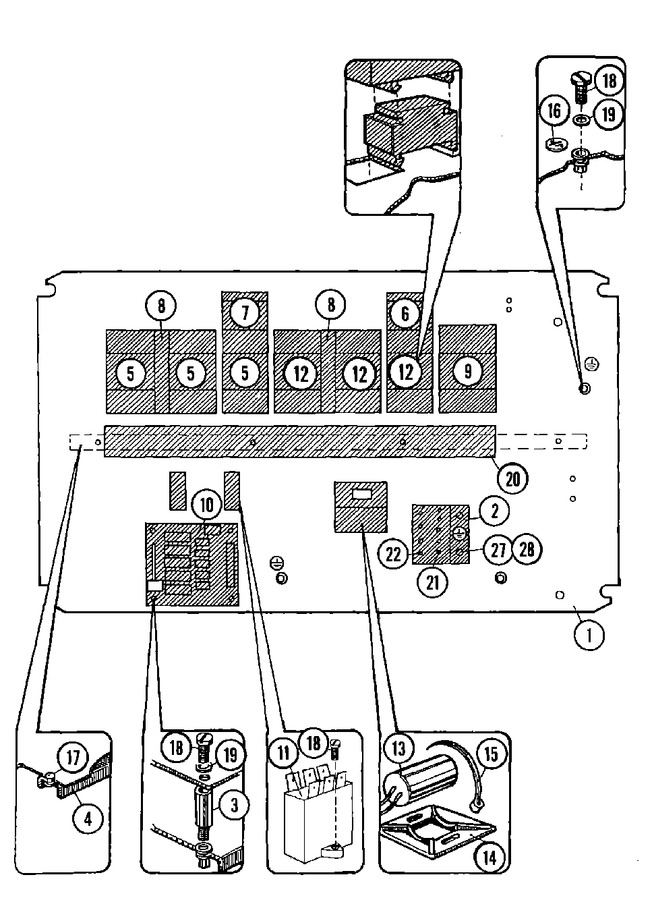

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23002082 | Plate, Ele. Component Mounting | 10 |
|
- | ||||
| 002 | 23002099 | Cube, Earth | 10 |
|
- | ||||
| 003 | 23002084 | Holder, Programmer | 10 |
|
- | ||||
| 004 | 23001716 | Support, Mounting Plate | 10 |
|
- | ||||
| 005 | 23001101 | Contactor (lc1-d1201 M7) | 10 |
|
- | ||||
| 006 | 23001106 | Relay, Overload (4-6a) | 10 |
|
- | ||||
| 006 | 23001108 | Relay, Overload (7-10a) | 10 |
|
- | ||||
| 007 | 23001105 | Relay, Overload (lr2-d1316) | 10 |
|
- | ||||
| 007 | 23002105 | Relay, Overload (lr2d1322) | 10 |
|
- | ||||
| 007 | 23001108 | Relay, Overload (lr2-d1314) | 10 |
|
- | ||||
| 007 | 23002101 | Relay, Overload (lr2-d1312) | 10 |
|
- | ||||
| 008 | 23001119 | Blocking, Contactors | 10 |
|
- | ||||
| 009 | 23002104 | Breaker, Circuit (iii-phase) | 10 |
|
- | ||||
| 010 | 23001718 | Board, Additional(soap Board) | 10 |
|
- | ||||
| 011 | 23001518 | Series 15 - No Longer Needed |
|
- | |||||
| 011 | NLA | Filter, Net | 10 |
|
- | ||||
| 012 | 23001102 | Contactor (lc1-d1801 M7) | 10 |
|
Immediately | $ 2,343.16 | |||
| 013 | NLA | Condensor | 10 |
|
- | ||||
| 014 | 23002048 | Holder, String | 10 |
|
- | ||||
| 015 | 23001720 | Wrap, Wire | 10 |
|
- | ||||
| 016 | NLA | Label, Earth | 10 |
|
- | ||||
| 017 | 23001461 | Nail | 10 |
|
- | ||||
| 018 | 23001361 | Bolt M4x10 | 10 |
|
- | ||||
| 019 | 23001056 | Washer (4.3) | 10 |
|
- | ||||
| 020 | 23002103 | Trough, Cable | 10 |
|
- | ||||
| 021 | 23001609 | Bolt (m4x12) | 10 |
|
- | ||||
| 021 | 23002111 | Washer (4) | 10 |
|
Immediately | $ 221.87 | |||
| 021 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 022 | 20002815 | Bolt (m6x12) (Replaces: 23001157) | 10 |
|
$ 188.18 | ||||
| 022 | 23001643 | Washer (m6) | 10 |
|
- | ||||
| 022 | 23001734 | Washer (m6) | 10 |
|
- | ||||
| 023 | NLA | Labels, Description | 10 |
|
- |
