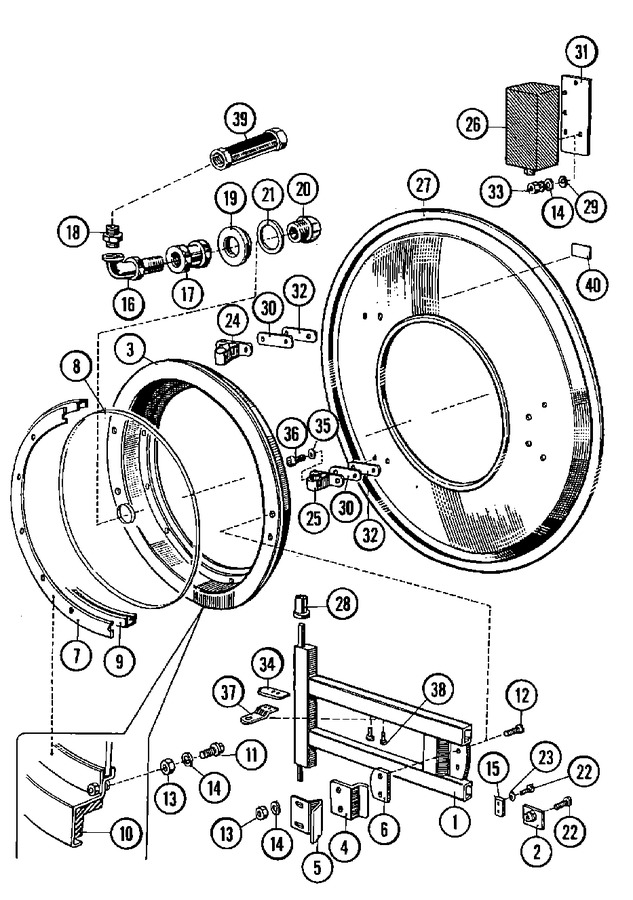

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001916		Frame, Door	10	Appelez-nous	-
002	NLA		Nut, Frame	10	Appelez-nous	-
003	23001918		Door, Loading	10	Appelez-nous	-
004	23001919		Latch, Door	10	Appelez-nous	-
005	23001920		Cover	10	Appelez-nous	-
006	23001921		Washer	10	Appelez-nous	-
007	23001922		Shim	10	Appelez-nous	-
008	23001923		Doorglass	10			$ 61.05
009	23001924		Gasket, Glass	10	Appelez-nous	-
010	23001925		Doorseal	10	Appelez-nous	-
011	NLA		Screw (m6x10)	10	Appelez-nous	-
012	23001374		Bolt (m6 X 20)	10	Appelez-nous	-
013	23001677		Nut (m6)	10	Appelez-nous	-
014	23001158		Washer M6	10	Appelez-nous	-
015	23001668		Contact, Magnetic	10	Appelez-nous	-
016	23001624		Connection, Elbow (3/4)	10	Appelez-nous	-
017	23001625		Adapter, Doorshower Fitting	10	Appelez-nous	-
018	23001623		Adapter, Hose Fitting	10	Appelez-nous	-
019	23001626		Washer, Shower	10	Appelez-nous	-
020	23001628		Shower, Door	10	Appelez-nous	-
021	23001931		O-ring (40x32)	10	Appelez-nous	-
022	23001932		Bolt (m3x6)	10	Appelez-nous	-
023	23001670		Washer (m4)	10	Appelez-nous	-
024	23001934		Hinge (top)	10	Appelez-nous	-
025	23001935		Hinge (btm)	10	Appelez-nous	-
026	23001936		Doorlock Assembly	10	Appelez-nous	-
027	23001937		Shield, Front	10	Appelez-nous	-
028	23001938		Adapter, Hinge	10	Appelez-nous	-
029	23001643		Washer (m6)	10	Appelez-nous	-
030	23001939		Shim, Hinge	10	Appelez-nous	-
031	NLA		Shim, Doorlock	10	Appelez-nous	-
032	23001941		Washer, Hinge	10	Appelez-nous	-
033	23004114		Bolt (m6x16)   (Replaces: 23001641)	10	Appelez-nous	-
034	23001034		Nut (m6)	10	Appelez-nous	-
035	23001631		Washer (m8)	10	Appelez-nous	-
036	23001602		Bolt, Lentil Cup (m8x16)	10	Appelez-nous	-
037	23001622		Shower, Support Door	10	Appelez-nous	-
038	NLA		Bolt (m6x12)	10	Appelez-nous	-
039	23001630		Hose, Water Inlet	10	Appelez-nous	-
040	23002124		Label, Heat Warning	10	Appelez-nous	-
