SELECT A DIAGRAM

01 - Soap Injection & Accessories


02 - Soap Box Assembly


03 - Control Panel


04 - Main Control


05 - Water Valve Assembly


06 - Water Valve Assembly (two Waters)

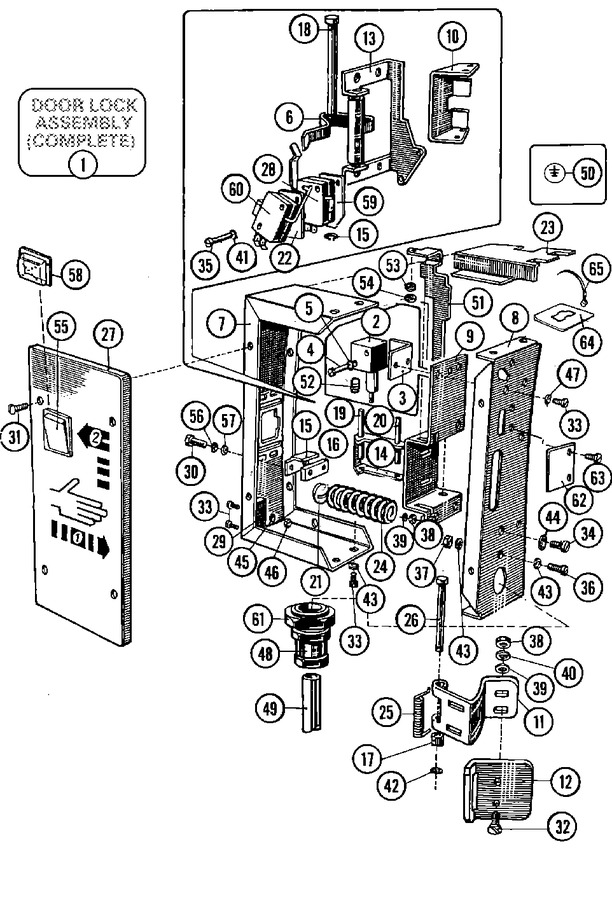

07 - Door Lock Assembly


08 - Door


09 - Outer Shell Assembly


10 - Inner Basket


11 - Bearing Assembly


12 - Drain Valve Assembly


13 - Motor & Pulley


14 - Frame & Cover Assembly


15 - Side Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001936		Doorlock Assembly	10	Appelez-nous	-
002	23001945		Coil, Electrical (220v)	10	Appelez-nous	-
003	23001946		Bracket, Coil	10	Appelez-nous	-
004	23001134		Bolt (m3 X 6)	10			$ 5.60
005	23002125		Washer, Spring (m3)	10	Appelez-nous	-
006	23001947		Hinge, Locking	10	Appelez-nous	-
007	23001948		Frame, Doorlock	10	Appelez-nous	-
008	NLA		Sideplate, Doorlock Frame	10	Appelez-nous	-
009	NLA		Support, Mounting	10	Appelez-nous	-
010	23001951		Handle, Locking	10	Appelez-nous	-
011	23001952		Handle, Opening	10	Appelez-nous	-
012	23001443		Plate, Handle	10	Appelez-nous	-
013	NLA		Support, Microswitch	10	Appelez-nous	-
014	23001954		Rail, Spring Guide	10	Appelez-nous	-
015	23001955		Bracket, Adjustment	10	Appelez-nous	-
016	23001957		Washer, Square	10	Appelez-nous	-
017	23001959		Tub, Distance	10	Appelez-nous	-
018	23001960		Pin, Mounting (i)	10	Appelez-nous	-
019	23001961		Pin, Mounting (ii)	10	Appelez-nous	-
020	23001962		Pin, Mounting (iii)	10	Appelez-nous	-
021	23001963		Seal, Spring	10	Appelez-nous	-
022	23001964		Flange, Isolation (i)	10	Appelez-nous	-
023	NLA		Flange, Isolation (ii)	10	Appelez-nous	-
024	23001966		Spring, Locking	10	Appelez-nous	-
025	23001967		Spring, Unlocking	10	Appelez-nous	-
026	23001968		Pin, Mounting (iv)	10	Appelez-nous	-
027	23001969		Doorlock, Front Panel	10	Appelez-nous	-
028	23001144		Microswitch	10	Appelez-nous	-
029	23001566		Switch, Magnetic	10	Appelez-nous	-
030	23001705		Screw (m6x10)	10	Appelez-nous	-
031	23001971		Screw (m4x8)	10	Appelez-nous	-
032	23001972		Screw (m5x12)	10	Appelez-nous	-
033	23001637		Screw (m4x5)	10	Appelez-nous	-
034	23001973		Screw (m5x6)	10	Appelez-nous	-
035	NLA		Screw (m3x12)	10	Appelez-nous	-
036	23001975		Screw (m4x12)	10	Appelez-nous	-
037	23001014		Nut M4	10	Appelez-nous	-
038	W10244602		Nut (m5)   (Replaces: 23002127)	10			$ 11.90
039	23004485		Washer (m5)   (Replaces: 23001640)	10	Appelez-nous	-
040	23002128		Washer, Spring (m5)	10	Appelez-nous	-
041	23001054		Washer (3)	10	Appelez-nous	-
042	23001976		Ring, Spring	10	Appelez-nous	-
043	23001670		Washer (m4)	10	Appelez-nous	-
044	23004485		Washer (m5)   (Replaces: 23001640)	10	Appelez-nous	-
045	23001013		Washer	10	Appelez-nous	-
046	23001014		Nut M4	10	Appelez-nous	-
047	23002129		Washer (m4)	10	Appelez-nous	-
048	23002196		Swivel, Cable	10	Appelez-nous	-
049	23001980		Tube, Wires Protection	10	Appelez-nous	-
050	NLA		Label, Earth	10	Appelez-nous	-
051	23001983		Core, Holder	10	Appelez-nous	-
052	23001985		Spring, Helical Compression	10	Appelez-nous	-
053	23001976		Ring, Spring	10	Appelez-nous	-
054	23001056		Washer (4.3)	10	Appelez-nous	-
055	23001984		Doorswitch (green)	10	Appelez-nous	-
056	23002130		Washer (6)	10	Appelez-nous	-
057	23001643		Washer (m6)	10	Appelez-nous	-
058	23001532		Cover, Button (plastic)	10	Appelez-nous	-
059	NLA		Washer, Isolation	10	Appelez-nous	-
060	23002133		Microswitch, Locking Hingel	10	Appelez-nous	-
061	23002197		Nut	10	Appelez-nous	-
064	23002048		Cushion, Self-adhesive	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
