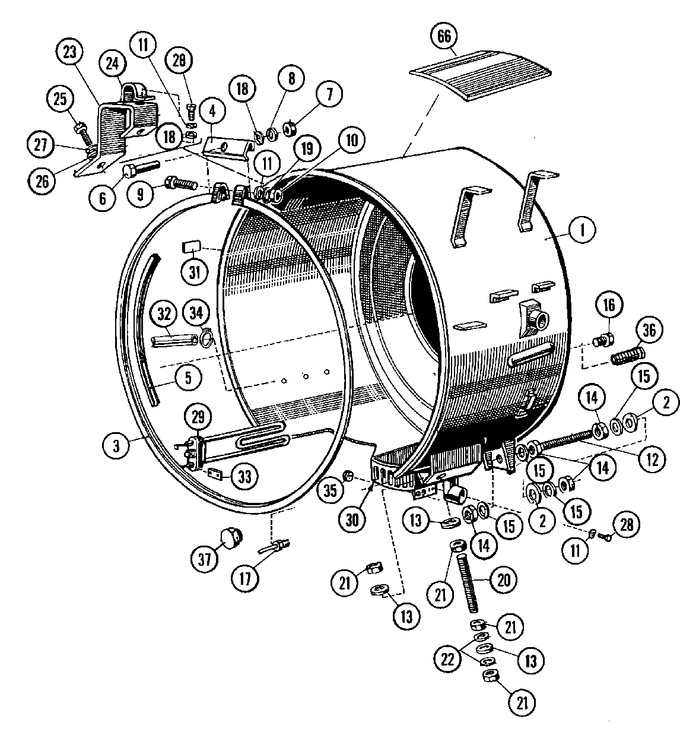

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Tub	10	Appelez-nous	-
001	23001827		Tub	10	Appelez-nous	-
002	23001292		Washer (13)	10	Appelez-nous	-
003	NLA		Ring, Front Shield Fastening	10	Appelez-nous	-
004	NLA		Ring, Cover Fastening	10	Appelez-nous	-
005	23001591		Seal, Front Shield (1=2700mm)	10	Appelez-nous	-
006	NLA		Bolt (m5x30)	10	Appelez-nous	-
007	23001597		Nut (m5)	10	Appelez-nous	-
008	23004485		Washer (m5)   (Replaces: 23001640)	10	Appelez-nous	-
009	NLA		Bolt (m6x60)	10	Appelez-nous	-
010	23001034		Nut (m6)	10	Appelez-nous	-
011	23001309		Washer (6.4) Lu	10	Appelez-nous	-
012	NLA		Backscrew, Tub Adjusting	10	Appelez-nous	-
013	23001757		Washer (16)	10	Appelez-nous	-
014	23001303		Nut (m12)	10	Appelez-nous	-
015	23001419		Washer (12)	10	Appelez-nous	-
016	23001604		Plug (3/4``)	10	Appelez-nous	-
017	23001073		Sensor, Temperature	10	Appelez-nous	-
018	23001158		Washer M6	10	Appelez-nous	-
019	23002128		Washer, Spring (5)	10	Appelez-nous	-
020	NLA		Frontscrew, Tub Adjusting	10	Appelez-nous	-
021	NLA		Nut (m16)	10	Appelez-nous	-
022	23001757		Washer (16)	10	Appelez-nous	-
023	NLA		Support, Rinse Hose	10	Appelez-nous	-
024	NLA		Clamp, Rinse Hose	10	Appelez-nous	-
025	NLA		Bolt (m8x16)	10	Appelez-nous	-
026	NLA		Washer (8.4)	10	Appelez-nous	-
027	23001265		Washer M8	10	Appelez-nous	-
028	20002815		Bolt (m6x12)   (Replaces: 23001157)	10			$ 188.18
029	WPW10399291		Element, Heating 80lb   (Replaces: 23002191)	10			$ 174.04
030	23002196		Swivel, Cable	10	Appelez-nous	-
031	NLA		Label, ``heat Warning``	10	Appelez-nous	-
032	23002193		Hose	10	Appelez-nous	-
033	NLA		Connection, Heating Element	10	Appelez-nous	-
034	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
035	23002197		Nut	10	Appelez-nous	-
