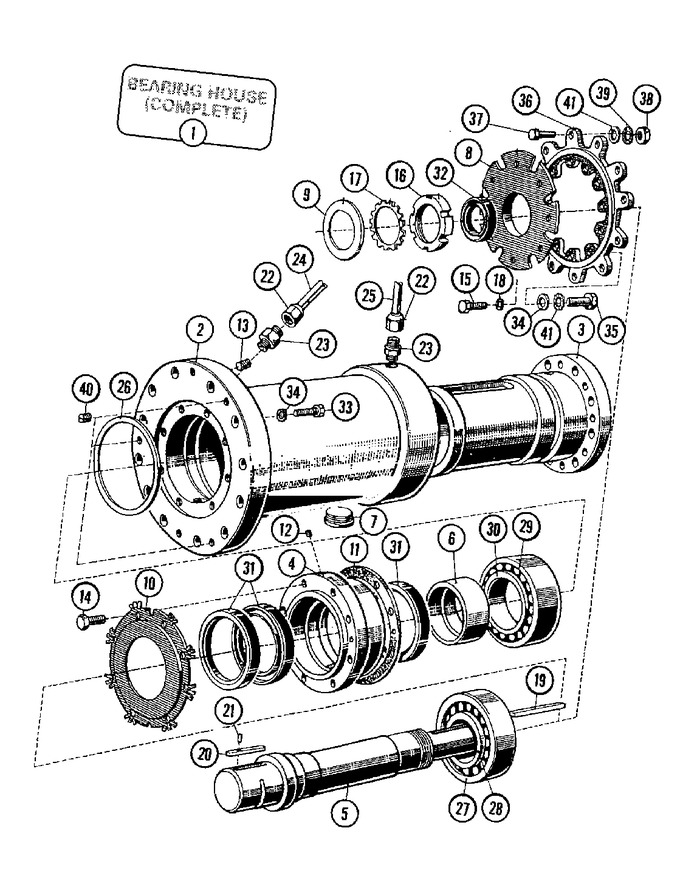

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001852		House, Bearing (complete)	10	Appelez-nous	-
002	23001853		House, Bearing	10	Appelez-nous	-
003	23001854		Holder, Bearing	10	Appelez-nous	-
004	23001855		Holder, Seal	10	Appelez-nous	-
005	23001856		Shaft, Main	10	Appelez-nous	-
006	23001857		Ring, Sealing	10	Appelez-nous	-
007	NLA		Nut, Blinding	10	Appelez-nous	-
008	NLA		Lid, Bearing House Rear	10	Appelez-nous	-
009	NLA		Ring, Distance	10	Appelez-nous	-
010	NLA		Cover, Front	10	Appelez-nous	-
011	23001862		Gasket, Seal Holder	10	Appelez-nous	-
012	23001290		Bolt (m6x6)	10	Appelez-nous	-
013	NLA		Screw, Blind (m10x10)	10	Appelez-nous	-
014	23001305		Bolt M8x25	10	Appelez-nous	-
015	23001662		Bolt (m10x30)	10	Appelez-nous	-
016	23001867		Ring, Fastening	10	Appelez-nous	-
017	23001868		Ring, Safety	10	Appelez-nous	-
018	23001400		Washer (10)	10	Appelez-nous	-
019	23001869		Wedge	10	Appelez-nous	-
020	23001870		Wedge	10	Appelez-nous	-
021	23001871		Pin (3x16)	10	Appelez-nous	-
022	23001646		Fixation, Grease Hose	10	Appelez-nous	-
023	23001645		Adaptor, Grease Hose	10	Appelez-nous	-
024	23001739		Hose, Grease	10	Appelez-nous	-
025	NLA		Hose, Grease	10	Appelez-nous	-
026	23001214		Ring, Sealing	10	Appelez-nous	-
027	23001873		Ring, Pulley Side Outside Bear	10	Appelez-nous	-
028	23001874		Ring, Pulley Side Inner Bearin	10	Appelez-nous	-
029	23001875		Ring, Drum Side Outside Bearin	10	Appelez-nous	-
030	23001876		Ring, Drum Side Inner Bearing	10	Appelez-nous	-
031	23001877		Seal	10	Appelez-nous	-
032	23002118		Seal	10	Appelez-nous	-
033	NLA		Bolt (m16x65)	10	Appelez-nous	-
034	23001912		Washer	10	Appelez-nous	-
035	NLA		Bolt (m16x50)	10	Appelez-nous	-
036	23001880		Plate, Bearing House Fixation	10	Appelez-nous	-
037	NLA		Bolt (m20x35)	10	Appelez-nous	-
038	NLA		Nut (m20)	10	Appelez-nous	-
039	23001823		Washer, Spring	10	Appelez-nous	-
040	23001825		Screw, Blinded	10	Appelez-nous	-
041	23001757		Washer (10)	10	Appelez-nous	-
