01 - Control Panel Parts


02 - Electrical Components


03 - Gas Components


04 - Grille Module Assy


05 - Main And Top Oven Assy


06 - Oven Cabinet Assy


07 - Oven Door Parts


08 - Page 1


09 - Storage Drawer Parts


10 - Top Burner Module Assy


11 - Ventilation Parts

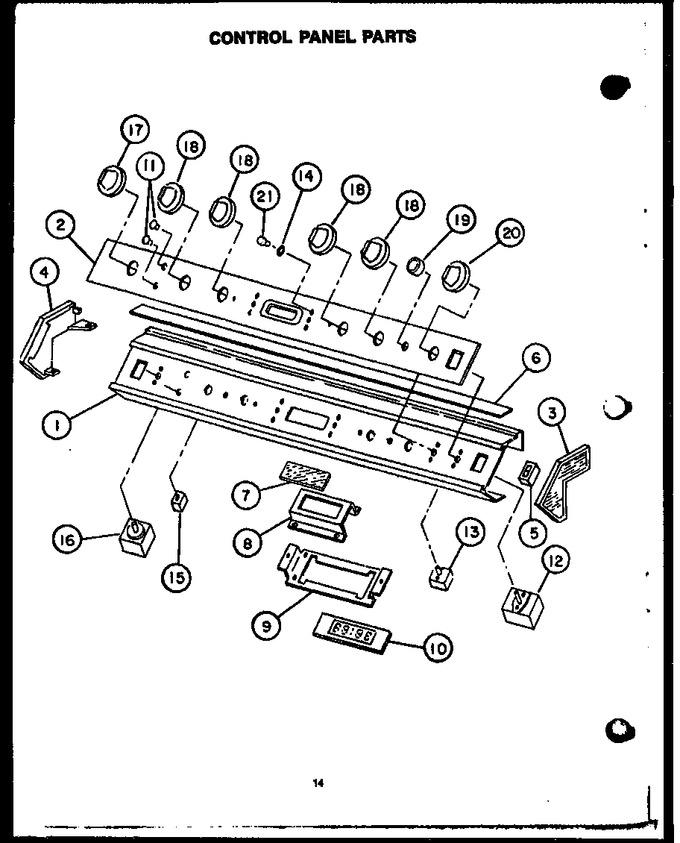

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0302255		Control Panel		Appelez-nous	-
1	0303178		Extrusion, Cont Panel		Appelez-nous	-
2	0303160		Insert Control Panel		Appelez-nous	-
2	0300109		Control Panel Insert		Appelez-nous	-
3	0058385		End Cap - R.h.		Appelez-nous	-
3	Y0302547		End Cap, Control Panel, Rh		Appelez-nous	-
4	Y0302546		End Cap L. H.		Appelez-nous	-
4	0058386		End Cap - L.h.		Appelez-nous	-
5	Y0303167		Switch, Oven Light (gray)		Appelez-nous	-
5	Y0300570		Switch,oven Light Xx Blk		Appelez-nous	-
6	0303166		Insert, Top Control Panel		Appelez-nous	-
6	0301131		Insert, Top Control Panel		Appelez-nous	-
7	Y303159		Glass, Clock		Appelez-nous	-
7	0300623		Glass, Clock		Appelez-nous	-
8	0300622		Mounting Bracket, Glass		Appelez-nous	-
9	Y0094682		Screw Type 23 6-32x5/16		Appelez-nous	-
9	Y0300382		Mtg. Bracket, Clock		Appelez-nous	-
10	0300816		Display Board		Appelez-nous	-
11	0303163		Lens, Indicator Clear		Appelez-nous	-
11	Y0301208		Lens, Indicator Light, Red		Appelez-nous	-
12	Y0061636		Selector Switch		Appelez-nous	-
13	Y0300574		Switch, Fan		Appelez-nous	-
13	Y0041778		Screw 6-32x3/16 Slo Cook Sw		Appelez-nous	-
14	Y0301481		Bushing, Clock		Appelez-nous	-
15	0065822		Light Indicator		Appelez-nous	-
16	Y0060710		Oven Thermostat, Push To Turn		Appelez-nous	-
17	Y0303162		Knob, Oven Control(gray)		Appelez-nous	-
17	0300380		Knob, Thermostat(black)		Appelez-nous	-
18	0303168		Knob, Top Burner		Appelez-nous	-
18	0301600		Knob, Top Burner		Appelez-nous	-
19	Y0303165		Knob, Fan Switch (lt. Gray)		Appelez-nous	-
19	Y0300581		Knob, Fan Switch (black)		Appelez-nous	-
20	0303161		Knob, Timed Cook		Appelez-nous	-
20	0300379		Knob, Selector Switch, Black		Appelez-nous	-
21	Y0300614		Button, W/cushion		Appelez-nous	-
21	0303164		Button, Timer		Appelez-nous	-
NI	Y0041818		Screw		Appelez-nous	-
NI	Y0041789		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
NI	Y0303157		Cont. Pnl Assg. Phu185 Nw		Appelez-nous	-
NI	0059446		Screw Wafer Head		Appelez-nous	-
NI	Y69162		Screw, Clock Mounting Bracket		Appelez-nous	-
NI	Y0075316		Screw 23 6x5/16 Ph Hd		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	Y0301735		Cont. Pnl Assg. Phu185 Nd		Appelez-nous	-
