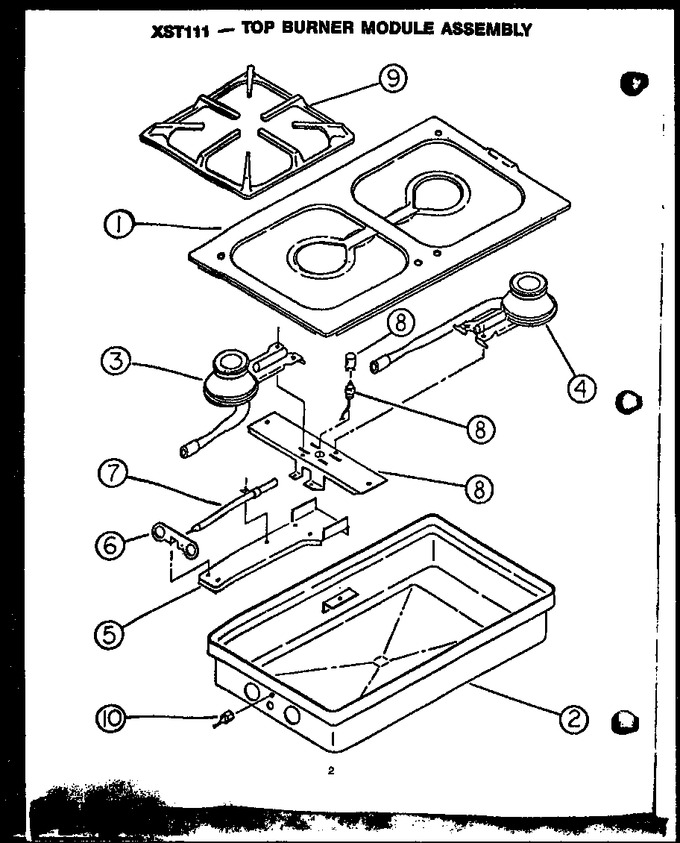

10 - Top Burner Module Assy


11 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300988B		Module Top-gas (blk Enamel)		Appelez-nous	-
2	300756B		Module Pan		Appelez-nous	-
3	0300181		Burner, Front (blk)		Appelez-nous	-
4	Y0300180		Burner, Rear (blk)		Appelez-nous	-
5	Y0041043		Burner Support Base Gt591		Appelez-nous	-
6	Y0041044		Venturi Support Kgt591		Appelez-nous	-
7	0042216		Connector,electrode Xx		Appelez-nous	-
8	Y0041500		Electrode And Cap Assy.		Appelez-nous	-
9	Y0042348		Grate, Top Burner		Appelez-nous	-
10	Y0041898		Ground Pin Xst311 Kgt591		Appelez-nous	-
NI	Y0041825		Screw, No.8-32 X 3/8 Hex Wsh Hd		Appelez-nous	-
NI	Y0041915		Rivet Type Cherry N		Appelez-nous	-
NI	Y0041897		Clip Module Top Kgt591		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	0041871		Tinnerman Clip No.c13091-8-z		Appelez-nous	-
NI	Y0041947		Internal Lock Washer No.10		Appelez-nous	-
NI	Y0041793		Tapping Screw 8 18 Hex		Appelez-nous	-
NI	Y0041789		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
