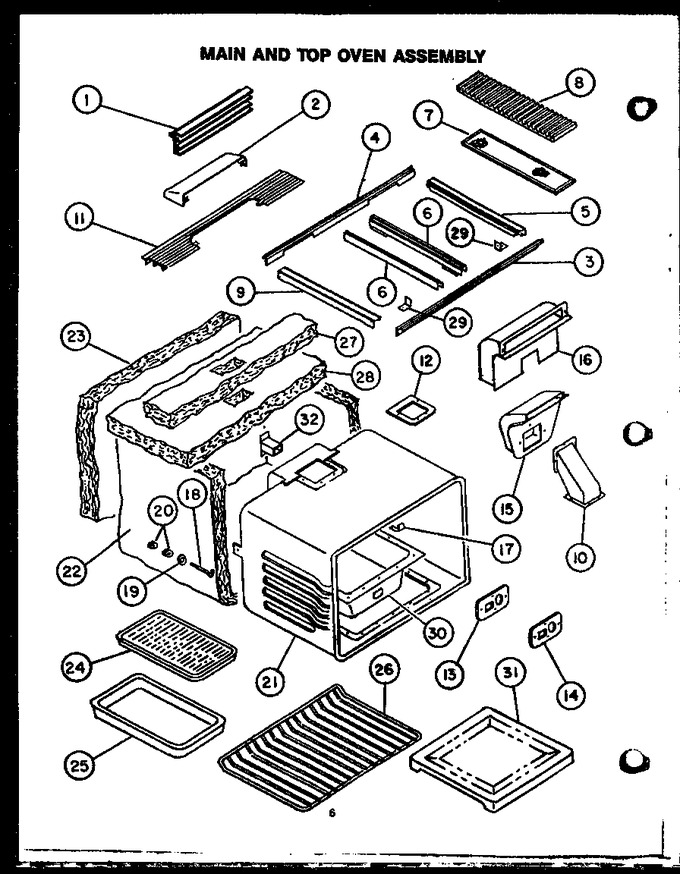

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0301547		Trim Piece,flue		Appelez-nous	-
2	75-061373-41-G		Cover, Dilution Flue		Appelez-nous	-
3	Y058528B		Frame, Front-main Top		Appelez-nous	-
4	301815B		Frame, Rear, Main Top		Appelez-nous	-
5	301225B		Frame Side, Right		Appelez-nous	-
6	303145W		Frame, Center Main Top (wht)		Appelez-nous	-
7	Y0058525		Filter		Appelez-nous	-
8	Y0058902		Cover, Vent (blk)		Appelez-nous	-
9	301224B		Frame Side, Lh		Appelez-nous	-
10	Y0300082		Oven Vent		Appelez-nous	-
11	300105B		Low Back Rail		Appelez-nous	-
12	Y0301559		Gasket, Vent		Appelez-nous	-
13	Y0301736		Gasket Plate		Appelez-nous	-
14	Y0301532		Plate, Broil Burner		Appelez-nous	-
15	300081B		Flue		Appelez-nous	-
16	301707G		Dilution Flue, Black		Appelez-nous	-
17	0060939		Chip Cover		Appelez-nous	-
18	Y0091536		Hook Bolt		Appelez-nous	-
19	Y0071876		Washer		Appelez-nous	-
20	0071881		Sub 41847, Hex Nut		Appelez-nous	-
21	301844E		Tank & Air Box		Appelez-nous	-
21	Y00000000		See Note Oven Tank And Air Box Assembly		Appelez-nous	-
22	Y0301713		Insulation, Wrapper		Appelez-nous	-
23	0301712		Insulation, Back		Appelez-nous	-
24	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
25	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
26	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
27	0058319		Insulation, Latch		Appelez-nous	-
28	0301711		Insulation, Top		Appelez-nous	-
29	Y0301154		Bracket, Frame Trim		Appelez-nous	-
30	Y0063802		Burner Box, Lower		Appelez-nous	-
31	Y0058625		Oven Bottom		Appelez-nous	-
32	Y0301551		Wire Raceway		Appelez-nous	-
NI	Y0071914		Screw, Tt Ab No.8 X 3/8``		Appelez-nous	-
NI	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	Y0041807		Screw No.8abx1/4 Ph Hd		Appelez-nous	-
NI	Y0097822		Rivet, Pop		Appelez-nous	-
NI	WP90767		Screw, Sm   (Replaces: Y0041816)			Immediately	$ 7.04
NI	0301542		Main Top Trim		Appelez-nous	-
NI	Y0301714		Insulation, Air Box		Appelez-nous	-
NI	Y0302497		Insulation, Cover Plate Latch		Appelez-nous	-
NI	Y0092371		Screw Ab 6x1/2 Phil Hd Flsh Tb		Appelez-nous	-
NI	Y1064433010		Screw, Lower Burner Box To Ove		Appelez-nous	-
NI	Y0058586		Screw {j}		Appelez-nous	-
