Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0042229 Rotiss Motor Xst310 Appelez-nous -
2 0040974 Motor Mtg Blkt Xst310 Appelez-nous -
3 Y00000000 See Note Part Of Reference No. 1 Appelez-nous -
4 0042749 Spit Xst310 Appelez-nous -
5 0042747 Skewer Appelez-nous -
6 0041770 Screw 1/4 20x1/2 Thumb Appelez-nous -
7 0042748 Rotisserie Handle Appelez-nous -
8 0042721 Rotiss Rack Xst310 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

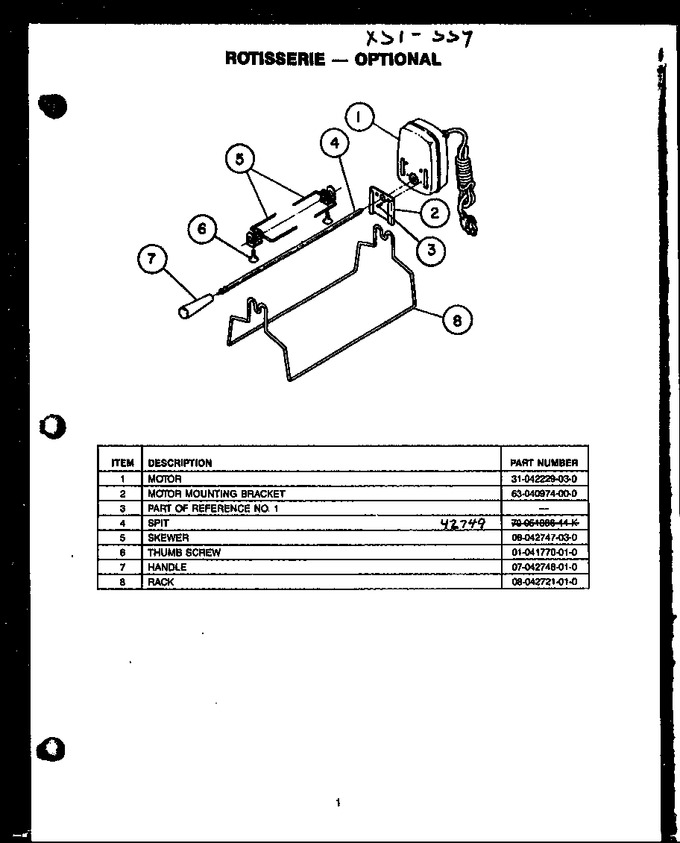

Diagram for PHU-185-NWW
