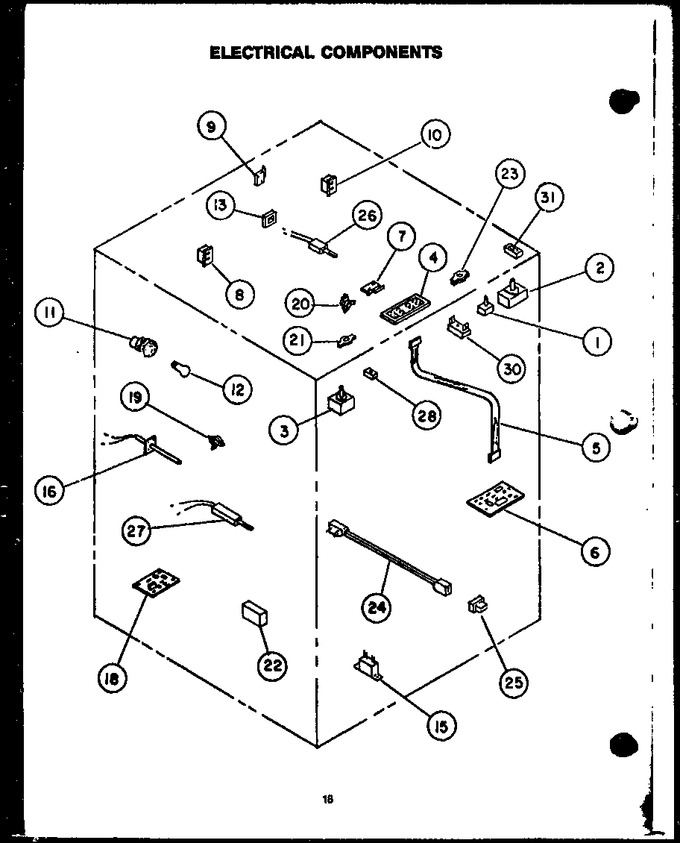

PHU-185-NWW | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	Y0300574	Switch, Fan	Appelez-nous	-
2	Y0061636	Selector Switch	Appelez-nous	-
3	Y0303063	Oven Thermostat, Push To Turn	Appelez-nous	-
3	Y0060710	Oven Thermostat, Push To Turn	Appelez-nous	-
4	0301293	Display Board (clock)	Appelez-nous	-
4	0300816	Display Board	Appelez-nous	-
5	Y0300808	Cable	Appelez-nous	-
6	Y0300807	P.c. Board, Power Supply	Appelez-nous	-
7	Y0065780	Switch, Clean Circuit			$ 11.77
7	Y0042052	Switch, Clean, Primary Interl	Appelez-nous	-
8	Y0301841	Assy., Plug Block, Rh	Appelez-nous	-
9	Y0054254	Switch, Fan	Appelez-nous	-
10	Y0301839	Assy., Plug Block, Rh	Appelez-nous	-
11	WP74011278	Assy, Oven Light (Replaces: Y0302471)			$ 101.56
11	WP74011278	Assy, Oven Light (Replaces: Y0302472)			$ 101.56
12	Y0042175	Bulb, Light	Appelez-nous	-
13	Y0059417	Plug, Ignitor Wires	Appelez-nous	-
15	Y0301962	Relay, Fan Switch	Appelez-nous	-
16	Y0060711	E.t.s. Sensor	Appelez-nous	-
18	Y0060559	Circuit Board	Appelez-nous	-
19	Y0053584	Switch, Hi Limit	Appelez-nous	-
20	Y0042066	Limit Switch-open 90	Appelez-nous	-
21	Y0061440	Spark Switch	Appelez-nous	-
22	Y0066564	Spark Module	Appelez-nous	-
23	Y0302009	Switch, Fan & Spark	Appelez-nous	-
24	Y0302684	Power Cord	Appelez-nous	-
25	Y0068333	Male Loading Plug	Appelez-nous	-
26	Y0060756	Assy, Svc Ignitor	Appelez-nous	-
27	X087699	Pkg 60 Ignitor	Appelez-nous	-
28	0065822	Light Indicator	Appelez-nous	-
30	Y0042191	Term Blk Eo&go 1m-2.5m-5m-10m	Appelez-nous	-
31	Y0303167	Switch, Oven Light (gray)	Appelez-nous	-
31	Y0300570	Switch,oven Light Xx Blk	Appelez-nous	-
NI	Y0300536	Wire Harness, Sensor	Appelez-nous	-
NI	Y0071911	Screw	Appelez-nous	-
NI	0041902	Speed Nut (twin Type)	Appelez-nous	-
NI	Y0078419	Screw 6-32x1/2``ph Pn Hd	Appelez-nous	-
NI	M0282005	Nut A (Replaces: Y0041843)			$ 7.07
NI	Y0091523	Insulation, Esm	Appelez-nous	-
