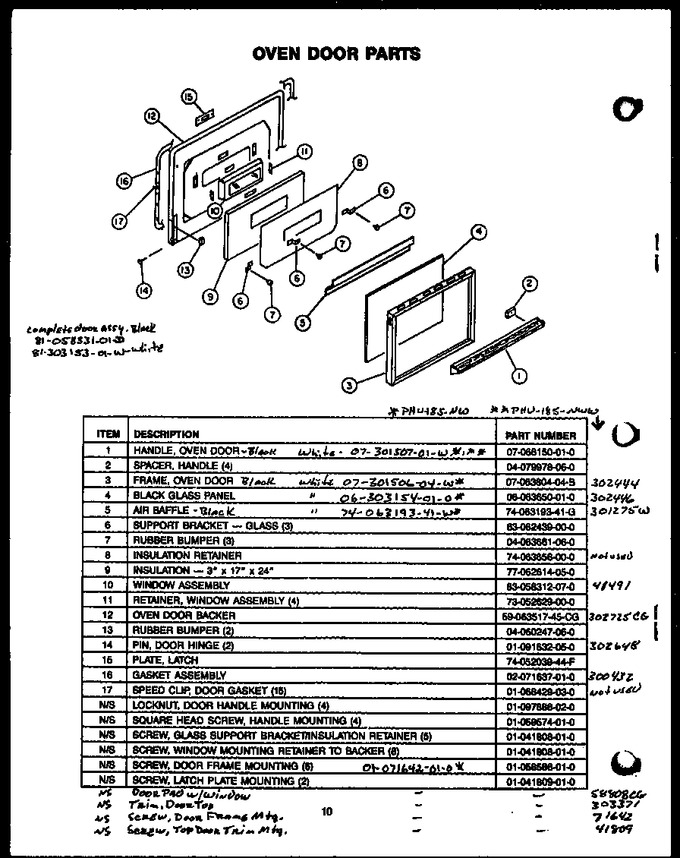

07 - Oven Door Parts


08 - Page 1


09 - Storage Drawer Parts


10 - Top Burner Module Assy


11 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	301507W		Handle		Appelez-nous	-
1	0068150		Handle, Door		Appelez-nous	-
2	Y0079978		Spacer Door Handle		Appelez-nous	-
3	Y0302444		Frame,oven Door		Appelez-nous	-
3	0063804		Frame, Door, Black		Appelez-nous	-
4	Y0063650		Panel, Black Glass		Appelez-nous	-
4	Y0302446		Glass, Oven Door, White		Appelez-nous	-
5	0063193		Plate, Air Baffle		Appelez-nous	-
5	301275W		Heat Baffle Oven Door White		Appelez-nous	-
6	Y0062439		Support Bracket, Glass		Appelez-nous	-
7	Y0063661		Bumper, Oven Door		Appelez-nous	-
8	Y00000000		See Note Insulation Retainer		Appelez-nous	-
9	0062614		Insulation,door-sub Backer		Appelez-nous	-
10	0041491		Window Assy		Appelez-nous	-
10	Y0058312		Window Assy		Appelez-nous	-
11	Y0052629		Retainer, Door Glass		Appelez-nous	-
12	302725CG		Door Backer, Electric (cg)		Appelez-nous	-
12	0063517		Sub 63517y, Door Backer		Appelez-nous	-
13	Y0060247		Bumper, Rubber		Appelez-nous	-
14	302648		Pin, Door Hinge		Appelez-nous	-
14	0091632		Rivet		Appelez-nous	-
15	Y0052039		Latch Plate		Appelez-nous	-
16	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
16	0071637		Dr. Gasket		Appelez-nous	-
NI	Y71642		Screw		Appelez-nous	-
NI	WP90767		Screw   (Replaces: Y0041808)			Immediately	$ 7.04
NI	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	41809		Switch				$ 14.31
NI	58808CG		Pad, Ov Dr W/window		Appelez-nous	-
NI	0303371		Top Trim Door		Appelez-nous	-
NI	0059574		Screw, Square		Appelez-nous	-
NI	Y0058586		Screw {j}		Appelez-nous	-
