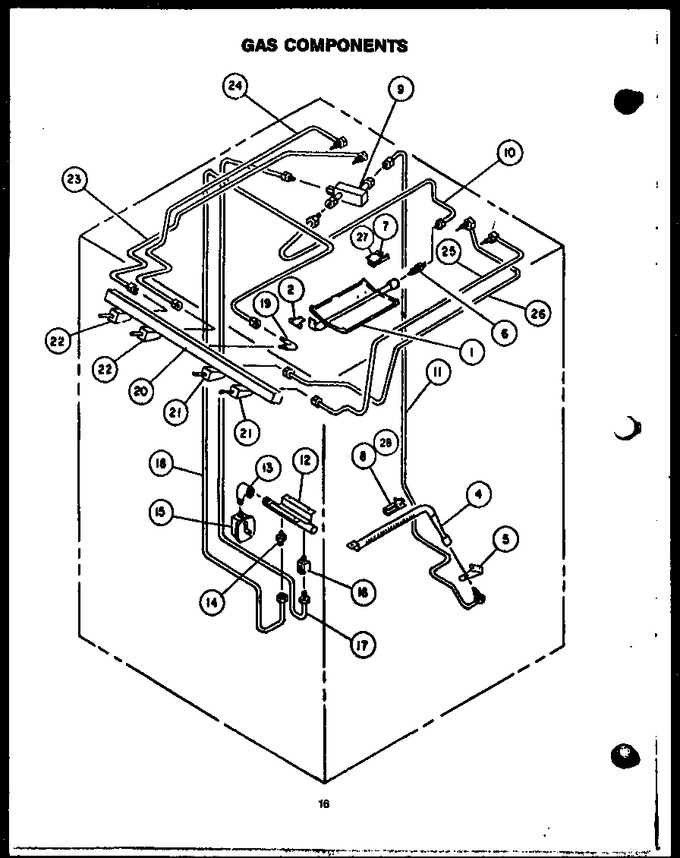

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0312099 | Kit Broil Burner Assy |
|
- | |||||
| 2 | 0300072 | Support, Broil Burner |
|
- | |||||
| 4 | 0300075 | Oven Burner |
|
- | |||||
| 5 | 0300091 | Bracket, Oven Orifice |
|
- | |||||
| 6 | 0302628 | Orifice Broil Burner-no.52 |
|
- | |||||
| 7 | Y0060756 | Assy, Svc Ignitor |
|
- | |||||
| 8 | X087699 | Pkg 60 Ignitor |
|
- | |||||
| 9 | Y0302706 | Valve, Gas, Dual |
|
- | |||||
| 10 | 0301744 | Tubing, Gas |
|
- | |||||
| 11 | 0302623 | Tubing Bake Orifice |
|
- | |||||
| 12 | 301858B | Inlet Pipe - Tapped |
|
- | |||||
| 13 | 0073084 | Elbow |
|
- | |||||
| 14 | Y0301263 | Fitting, 1/8``x 3/8`` |
|
- | |||||
| 15 | 0302495 | Pressure Regulator |
|
- | |||||
| 16 | Y0301361 | Valve, Shut-off |
|
- | |||||
| 17 | 0301743 | Tubing Shut Off To Gas Valve |
|
- | |||||
| 18 | Y0301742 | Inlet Pipe To Inlet Manifold |
|
- | |||||
| 19 | Y0301864 | Elbow, 1/4 Npt X 3/8 C |
|
- | |||||
| 20 | 3001004 | Partition, Center (large) |
|
- | |||||
| 21 | Y0301731 | Valve, Top Burner, Rh |
|
- | |||||
| 22 | Y0301732 | Valve, Top Burner, Lh |
|
- | |||||
| 23 | 0302624 | Tubing, Orifice L.f.-no.55 |
|
- | |||||
| 24 | Y0302625 | Tubing, Orifice L.r. No.55 |
|
- | |||||
| 25 | Y0302626 | Tubing Orifice Rf |
|
- | |||||
| 26 | Y0302627 | Tubing Orifice Rr |
|
- | |||||
| 27 | Y0301556 | Shield, Broiler Ignitor |
|
- | |||||
| 28 | Y0063757 | Bracket, Igniter Mounting |
|
- | |||||
| NI | Y0097871 | Nut, Pal 3/4-16 X 1.062 |
|
- | |||||
| NI | WP90767 | Screw, Sm (Replaces: Y0041816) |
|
Immediately | $ 7.04 | ||||
| NI | Y0300090 | Brkt., Gas Valve Mtg. |
|
- | |||||
| NI | Y0061441 | Surface Valve Bolt& Gasket |
|
- |
