01 - Control Panel Parts


02 - Electrical Components


03 - Gas Components


04 - Grille Module Assy


05 - Main And Top Oven Assy


06 - Oven Cabinet Assy


07 - Oven Door Parts


08 - Page 1


09 - Storage Drawer Parts


10 - Top Burner Module Assy


11 - Ventilation Parts

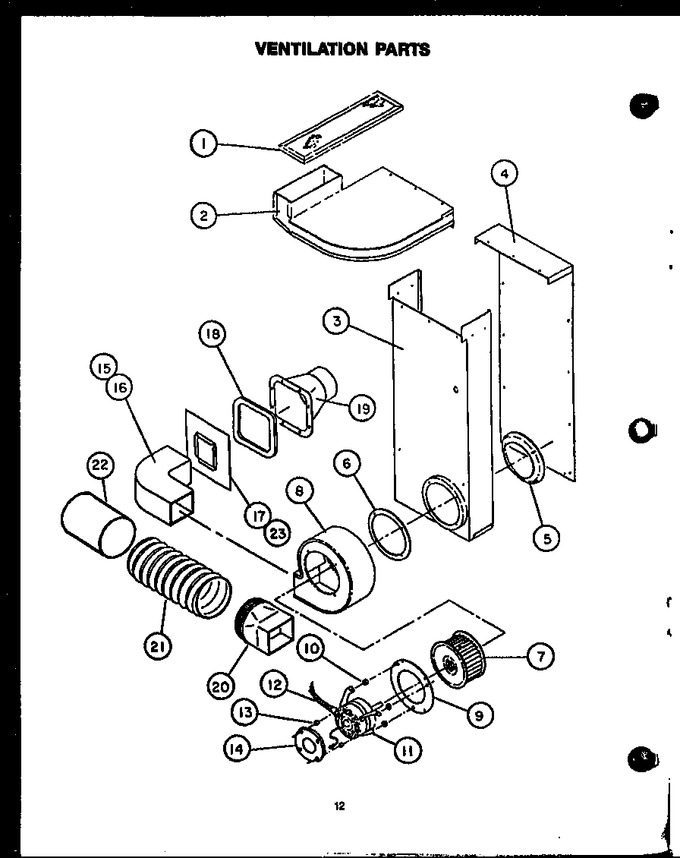

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0058526		Smoke Eliminator		Appelez-nous	-
2	302087B		Top, Plenum		Appelez-nous	-
3	Y0301705		Plenum, Rear		Appelez-nous	-
4	Y0058567		Cover, Rear Plenum		Appelez-nous	-
5	Y0059562		Orifice Assy.		Appelez-nous	-
6	0059569		Gasket, Motor Mtg		Appelez-nous	-
7	Y0042752		Fan Wheel Ket595		Appelez-nous	-
8	300618G		Blower Housing, Flat Black		Appelez-nous	-
8	302681G		Blower Housing, Flat Black		Appelez-nous	-
9	0059470		Plate, Motor Mtg		Appelez-nous	-
10	0041981		Rubber Grommet		Appelez-nous	-
11	Y0058327		Motor, Fan 115v 60hz		Appelez-nous	-
12	0042115		Conduit (3/8 X 18)		Appelez-nous	-
13	0059120		Spacer, Motor Cover		Appelez-nous	-
14	0059471		Motor Cover		Appelez-nous	-
15	Y0302680		Net-duct, Wall		Appelez-nous	-
15	Y0310933		Duct, Floor		Appelez-nous	-
16	Y0302678		Duct Floor		Appelez-nous	-
16	Y0310938		Duct, Floor		Appelez-nous	-
17	Y0301405		Duct Plate, Wall		Appelez-nous	-
18	Y0301343		Gasket, Bonded		Appelez-nous	-
19	Y0310943		Transition,wall/floor/side Cab		Appelez-nous	-
20	Y0059493		Transition		Appelez-nous	-
21	Y0300663		Flexible Duct 15``		Appelez-nous	-
22	0301054		Trans. Side Duct Kit		Appelez-nous	-
23	0310945		Plate, Duct Wall/floor		Appelez-nous	-
NI	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
NI	0041933		Washer K		Appelez-nous	-
NI	WP3400029		Nut   (Replaces: Y0041857)			Immediately	$ 6.98
NI	Y0051941		Sleeving		Appelez-nous	-
NI	0098549		Bolt, Shoulder		Appelez-nous	-
