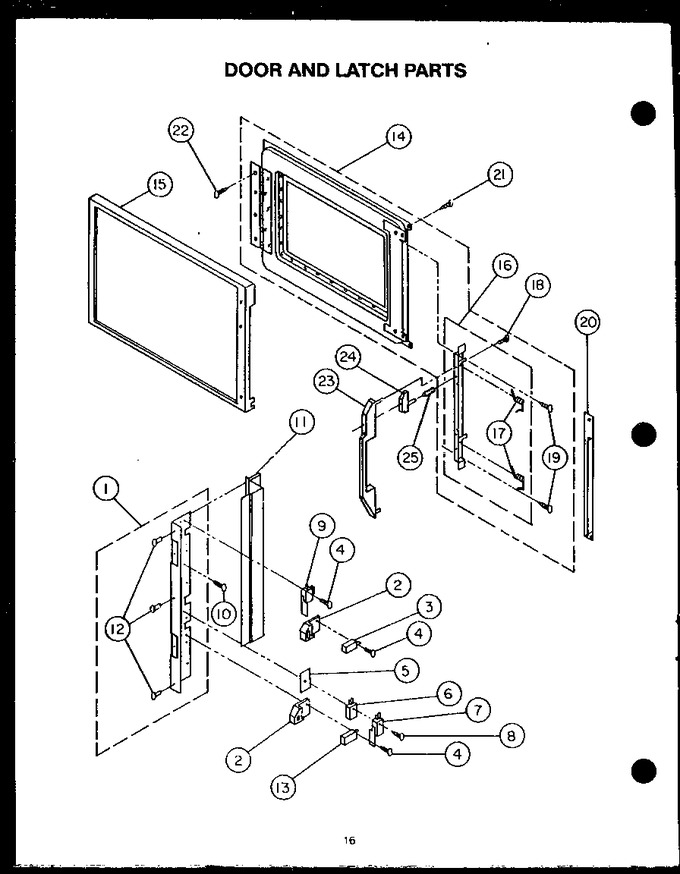

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0055213 | X Bracket, Catch |
|
- | |||||
| 2 | 0055217 | Catch |
|
- | |||||
| 3 | 814037 | Switch, Primary Interlock (Replaces: Y0055294) |
|
$ 81.32 | |||||
| 4 | Y0055233 | Screw |
|
- | |||||
| 5 | 0055239 | Insulator, Mon. Sw. |
|
- | |||||
| 6 | Y0055293 | Switch, Monitor/oven Light |
|
- | |||||
| 7 | Y0055293 | Switch, Monitor/oven Light |
|
- | |||||
| 8 | 0055207 | Screw |
|
- | |||||
| 9 | Y0055238 | Switch, Secondary Interlock |
|
- | |||||
| 10 | Y0055233 | Screw |
|
- | |||||
| 11 | 0312769 | Shield |
|
- | |||||
| 12 | Y0055222 | Pop Rivet A |
|
- | |||||
| 13 | 814037 | Switch, Primary Interlock (Replaces: Y0055294) |
|
$ 81.32 | |||||
| 14 | 0312797 | Door Inner |
|
- | |||||
| 15 | Y0312796 | Door, Outer |
|
- | |||||
| 16 | 0055286 | Latch Assy |
|
- | |||||
| 17 | Y0055212 | Spring, Torsion |
|
- | |||||
| 18 | 0055272 | Screw |
|
- | |||||
| 19 | Y0055275 | Screw |
|
- | |||||
| 20 | Y0055305 | End Cap |
|
- | |||||
| 21 | Y0055276 | Screw |
|
- | |||||
| 22 | Y0055216 | Screw |
|
- | |||||
| 23 | Y0312791 | Handle Door |
|
- | |||||
| 24 | 0312792 | Button Door Handle |
|
- | |||||
| 25 | Y0055206 | Spring, Compression |
|
- |
