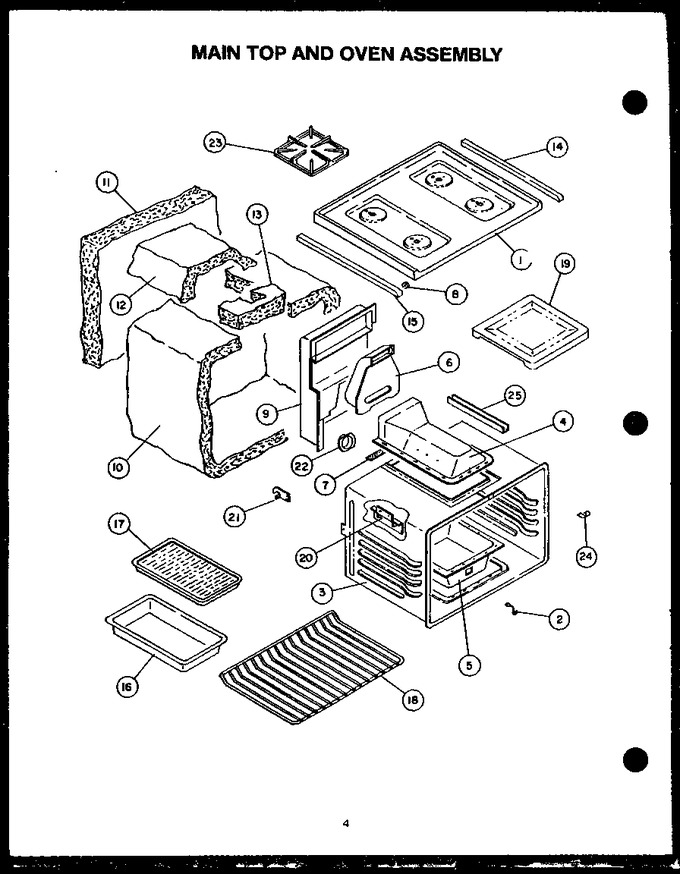

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	304360W		Maintop, Sealed Burner (white)		Appelez-nous	-
1	Y00000000		See Note Front Frame -- (not Field Replaceable		Appelez-nous	-
1	304360L		Maintop Sealed Burner (almond)		Appelez-nous	-
2	Y0091546		Support		Appelez-nous	-
3	Y00000000		See Note Oven Shell		Appelez-nous	-
4	Y0062892		Chamber, Broiler		Appelez-nous	-
5	Y0063802		Burner Box, Lower		Appelez-nous	-
6	0062770		Flue		Appelez-nous	-
7	0062754		Gasket, Oven Back		Appelez-nous	-
8	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
9	0063552		Flue, Dilution		Appelez-nous	-
10	Y0062947		Sub 41966, Insulation		Appelez-nous	-
11	Y0062945		Sub 41966, Insulation		Appelez-nous	-
12	Y0062946		Sub 41966, Insulation		Appelez-nous	-
13	Y0062944		Sub 41966, Insulation		Appelez-nous	-
14	0302981		Trim, Main Top, Rh, Gas		Appelez-nous	-
15	0302980		Trim, Main Top, Lh, Gas		Appelez-nous	-
16	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
17	Y00000000		See Note Broiler Grid		Appelez-nous	-
18	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
19	Y0058625		Oven Bottom		Appelez-nous	-
20	0062792		Shield, Thermostat Bulb		Appelez-nous	-
21	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
22	Y0062799		Cup, Duct		Appelez-nous	-
23	Y0060529		Grate		Appelez-nous	-
24	0300278		Chip Cover		Appelez-nous	-
25	Y0304019		Channel, Broil Burner		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
