SELECT A DIAGRAM

01 - Cabinet And Stirrer Parts


02 - Door And Latch Parts


03 - Electrical Components


04 - Magnetron And Air Flow Parts


05 - Main Top And Oven Assy


06 - Microwave Oven - Interior Parts


07 - Oven Cabinet Assy


08 - Oven Door Parts


09 - Page 1


10 - Sealed Burner Parts

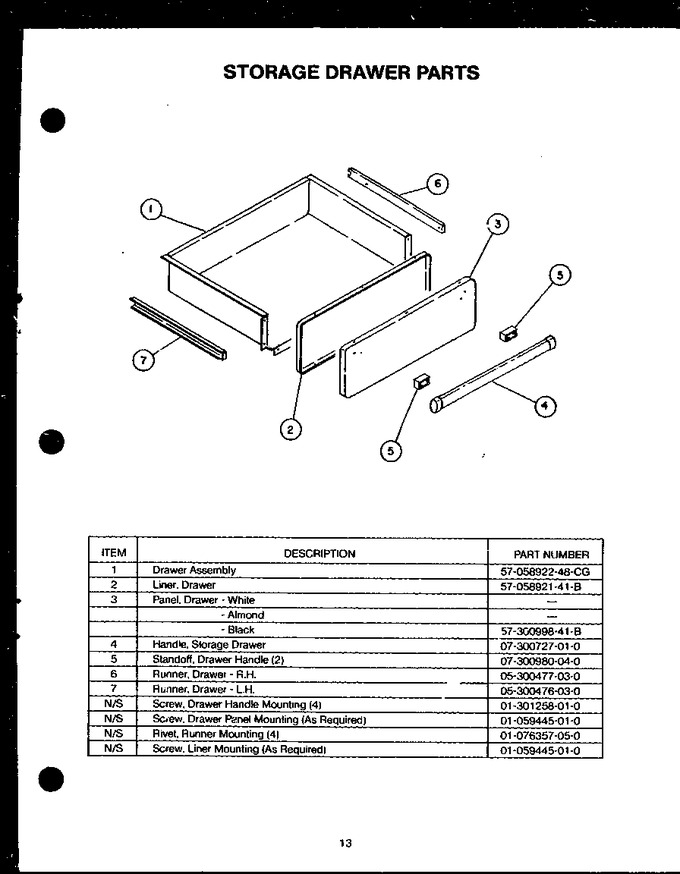

11 - Storage Drawer Parts


12 - Upper Control Panel Parts


13 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58922CG		Wrapper, Stor Drawer		Appelez-nous	-
2	Y0058921		Liner Drawer (blk)		Appelez-nous	-
3	300998B		Panel, Drawer		Appelez-nous	-
3	Y00000000		See Note Panel, Drawer - White		Appelez-nous	-
4	0300727		Handle, Door		Appelez-nous	-
5	0300980		Standoff, Door Handle		Appelez-nous	-
6	0300477		Runner, Storage Door R.h.		Appelez-nous	-
7	Y0300476		Runner, Storage Door, L.h.		Appelez-nous	-
NI	0301258		Screw, 8-32 X 1 1/2		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	Y0076357		Rivet, Pop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
