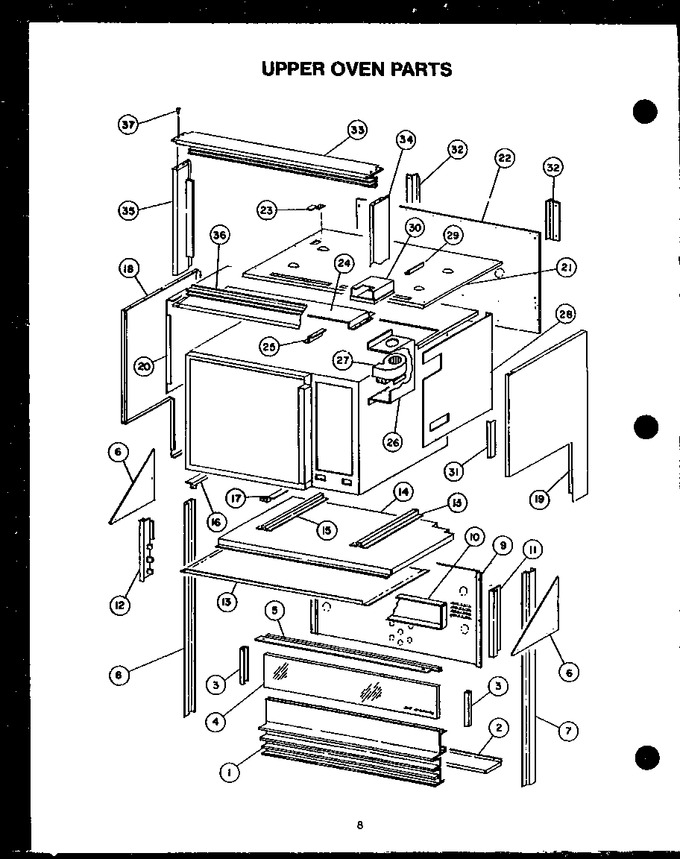

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	304037W		Lower Trim Splashplate		Appelez-nous	-
1	304037L		Lower Trim Splashplate		Appelez-nous	-
2	0062423		Shield, Heat		Appelez-nous	-
3	Y0303647		Trim Glass Channel		Appelez-nous	-
4	0303680		Glass Splashplate		Appelez-nous	-
5	0062230		Trim, Rear		Appelez-nous	-
6	Y0300636		Brace, Up Oven Shelf		Appelez-nous	-
7	Y0300414		Support Right		Appelez-nous	-
8	0300413		Support Left		Appelez-nous	-
9	0302252		Rear Backguard & Cover Plate		Appelez-nous	-
10	0304537		Panel Surface Light		Appelez-nous	-
11	Y0303693		Trim Support Lower Rh		Appelez-nous	-
12	Y0303694		Trim Support Lower Lh		Appelez-nous	-
13	W10125480		Jacket Bottom		Appelez-nous	-
14	Y0059894		Shelf		Appelez-nous	-
15	Y0059895		Support-micro Runner		Appelez-nous	-
16	0059907		Runner, Micro, Left		Appelez-nous	-
17	0059908		Runner, Micro, Right		Appelez-nous	-
18	303644W		Side Panel Lh		Appelez-nous	-
18	303644L		Side Panel Lh		Appelez-nous	-
19	303643W		Side Panel Rh		Appelez-nous	-
19	303643L		Side Panel Rh		Appelez-nous	-
20	Y0304606		Baffle, Microwave		Appelez-nous	-
21	Y0304514		Jacket Top		Appelez-nous	-
22	Y0062464		Cover, Rear		Appelez-nous	-
23	Y0073060		Receptacle Cover		Appelez-nous	-
24	W10125473		Cap, Baffle		Appelez-nous	-
25	W10125470		Separator, Baffle		Appelez-nous	-
26	W10125036		Bracket, Fan Mounting		Appelez-nous	-
27	Y0042289		Blower Assy Microwaves		Appelez-nous	-
28	Y0304515		Cover Rh		Appelez-nous	-
29	W10125035		Flange, Mounting		Appelez-nous	-
30	Y0304512		Intake Duct		Appelez-nous	-
31	Y0059770		Brace, Control Panel		Appelez-nous	-
32	Y00000000		See Note Wall Spacer		Appelez-nous	-
33	Y0304385		Top Trim Upper Oven Frame		Appelez-nous	-
34	0304368		Right Side Trim Upper Frame		Appelez-nous	-
35	Y0304369		Left Side Trim Upper Frame		Appelez-nous	-
36	Y0304366		Bottom Trim Upper Ov Frame		Appelez-nous	-
37	Y0041807		Screw No.8abx1/4 Ph Hd		Appelez-nous	-
NI	Y0305026		Trim Shield Side Lh		Appelez-nous	-
NI	Y0071265		Bracket, Socket, Fl. Lite		Appelez-nous	-
NI	Y2068242050		Insulation, 2`` X 6.5`` X 22``		Appelez-nous	-
NI	Y0305027		Trim Shield Side Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
