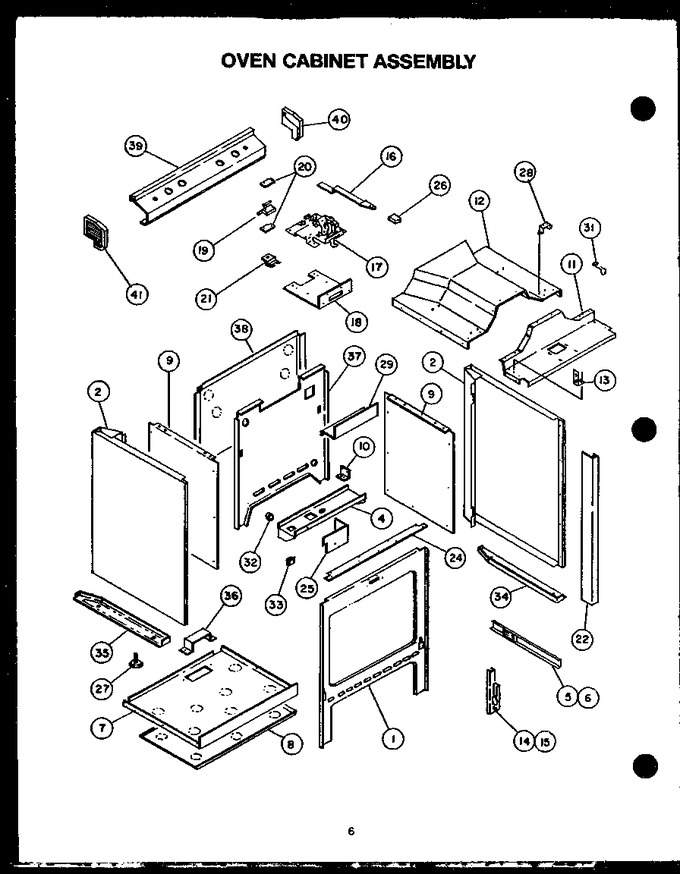

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	302710L		Panel, Side (alm)		Appelez-nous	-
2	302710W		Panel, Side (wht)		Appelez-nous	-
4	0058890		Shelf, Gas Valve		Appelez-nous	-
5	0300475		Track, Storage Drawer-r.h.		Appelez-nous	-
6	Y0300474		Track, Storage Drawer-l.h.		Appelez-nous	-
7	Y0058896		Insul, Ret.-bottom		Appelez-nous	-
8	Y0063706		Shield, Heat		Appelez-nous	-
9	Y0303572		Side Insulation Retainer		Appelez-nous	-
10	0053182		Bracket, Gas Valve		Appelez-nous	-
11	Y0303571		Retainer Insulation		Appelez-nous	-
12	Y0303570		Insulation Retainer Top X		Appelez-nous	-
13	Y0065458		Bracket, Spark Module Mtg.		Appelez-nous	-
14	Y0066954		Kit, Door Hinge (rh-ss)		Appelez-nous	-
15	Y0066952		Kit, Door Hinge (lh-hs)		Appelez-nous	-
16	303040B		Handle, Door Latch (blk)		Appelez-nous	-
17	Y0063733		Latch Assembly		Appelez-nous	-
18	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
19	Y0065780		Switch, Clean Circuit				$ 11.77
20	Y0091523		Insulation, Esm		Appelez-nous	-
21	Y0302316		Bracket, Switch		Appelez-nous	-
22	Y0301639		Trim, Side Panel, Lh		Appelez-nous	-
24	302380B		Filler, Front Frame		Appelez-nous	-
25	Y0058916		Cover, Electrical		Appelez-nous	-
26	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
27	Y0300585		Leg, Leveling		Appelez-nous	-
28	0303189		Bracket Venturi Mounting		Appelez-nous	-
29	Y0058834		Cover, Elec. Wires		Appelez-nous	-
31	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
32	Y0042659		Snap Bushing		Appelez-nous	-
33	Y0091587		Cable, Clip Esm		Appelez-nous	-
34	Y0058991		Brace, Leveling Leg (lt)		Appelez-nous	-
35	Y0058992		Brace, Leveling Leg (lt)		Appelez-nous	-
36	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
37	Y0058994		Retainer, Rear Insulation		Appelez-nous	-
38	0302252		Rear Backguard & Cover Plate		Appelez-nous	-
39	0303240		Panel, Control		Appelez-nous	-
40	0302985		End Cap, Control Panel, Rh		Appelez-nous	-
41	0302984		End Cap, Control Panel, Lh		Appelez-nous	-
NI	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
NI	Y0041769		Screw 6 32x5/16 Ph Fh		Appelez-nous	-
NI	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	Y0300830		Screw No.10-32 X .375		Appelez-nous	-
NI	0062840		Cover Plate Latch		Appelez-nous	-
NI	Y0301552		Anti-tip Pack		Appelez-nous	-
