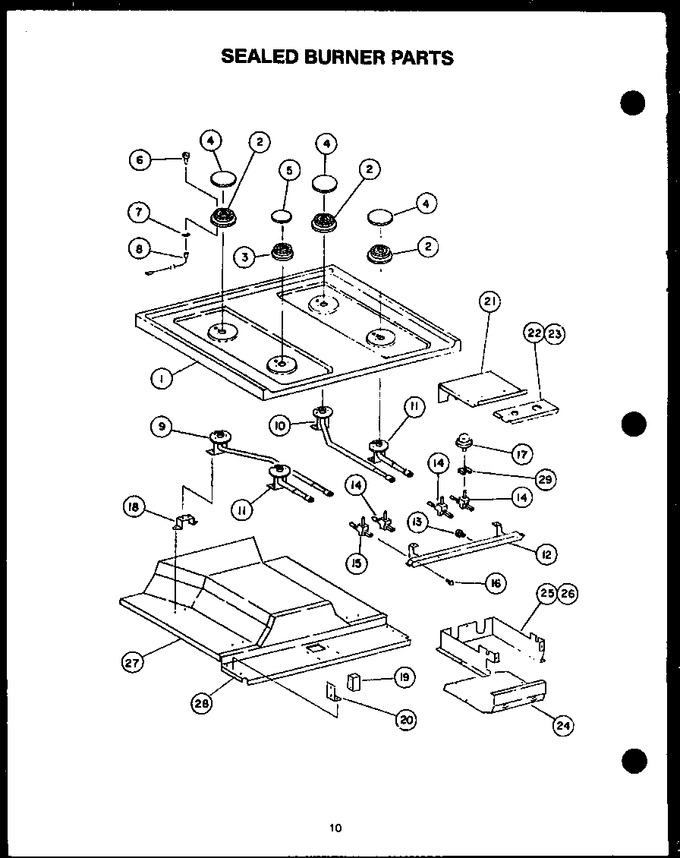

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	304360L		Maintop Sealed Burner (almond)		Appelez-nous	-
1	304360W		Maintop, Sealed Burner (white)		Appelez-nous	-
2	Y0303558		Burner, 4``		Appelez-nous	-
3	Y0303559		Assy Burner 3``		Appelez-nous	-
4	303536B		Burner Cap, Large (blk)		Appelez-nous	-
5	303534B		Cap, Burner (small)		Appelez-nous	-
6	Y0304357		Assy, Electrode		Appelez-nous	-
7	Y0304365		Clip, Electrode		Appelez-nous	-
8	Y0304358		Wire Jumper Assy 20``		Appelez-nous	-
9	Y0304363		Venturi Assy Lr Sealed Burner		Appelez-nous	-
10	Y0304362		Venturi Assy Rr Sealed Burner		Appelez-nous	-
11	Y0304364		Venturi Assy Front Sealed Burn		Appelez-nous	-
12	0303248		Manifold Pipe, Tapped W/bracke		Appelez-nous	-
13	Y0303219		Fitting 1/4 Npt X 3/8 Comp		Appelez-nous	-
14	0304568		Valve 9khi Med Adj Low		Appelez-nous	-
15	Y0304569		Valve 7khi Med Adj Low		Appelez-nous	-
16	Y0061441		Surface Valve Bolt& Gasket		Appelez-nous	-
17	Y0300705		Knob, Top Burner (blk)		Appelez-nous	-
18	0303189		Bracket Venturi Mounting		Appelez-nous	-
19	Y0302477		Spark Module		Appelez-nous	-
20	Y0065458		Bracket, Spark Module Mtg.		Appelez-nous	-
21	Y0303187		Plenum, Top		Appelez-nous	-
22	Y0303208		Plenum, Wrapper R.h.		Appelez-nous	-
23	0303568		Plenum, Top Front		Appelez-nous	-
24	Y0303186		Plenum, Bottom		Appelez-nous	-
25	0303210		Wrapper Rh Side		Appelez-nous	-
26	Y0303185		Plenum, Wrapper L.h.		Appelez-nous	-
27	Y0303510		Insulation Retainer, Top		Appelez-nous	-
28	Y0303571		Retainer Insulation		Appelez-nous	-
29	Y0300521		Switch,licon Gas Ignition				$ 57.33
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	W11772394		Screw   (Replaces: Y0071847)			Immediately	$ 10.94
NI	8169479		Screw, No.8-18 X 1/2 P Flt Hd   (Replaces: Y0041811)				$ 6.26

    View Diagram in Separate Window       Print Part List
