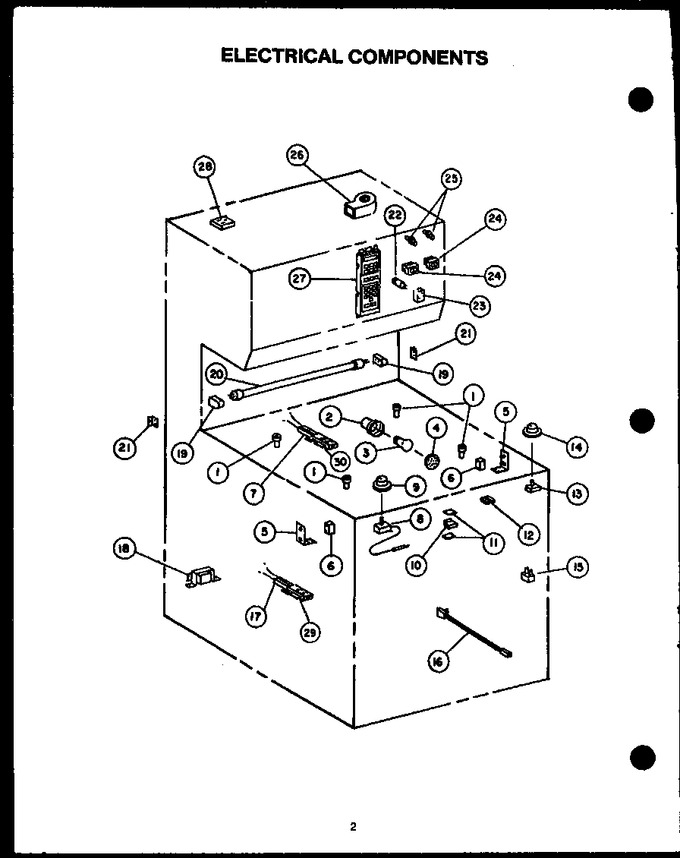

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0304357 | Assy, Electrode |
|
- | |||||
| 2 | WP74011278 | Assy, Oven Light (Replaces: Y0302472) |
|
$ 101.56 | |||||
| 3 | Y0042175 | Bulb, Light |
|
- | |||||
| 4 | WP74011278 | Assy, Oven Light (Replaces: Y0302471) |
|
$ 101.56 | |||||
| 5 | Y0065458 | Bracket, Spark Module Mtg. |
|
- | |||||
| 6 | Y0302477 | Spark Module |
|
- | |||||
| 7 | X087699 | Pkg 60 Ignitor |
|
- | |||||
| 8 | Y0303060 | Oven Thermostat, Push To Turn |
|
- | |||||
| 9 | 0300706 | Knob, Thermostat (blk) |
|
- | |||||
| 10 | Y0065780 | Switch, Clean Circuit |
|
$ 11.77 | |||||
| 11 | Y0091523 | Insulation, Esm |
|
- | |||||
| 12 | Y0300521 | Switch,licon Gas Ignition |
|
$ 57.33 | |||||
| 13 | Y0300901 | Switch, Selector |
|
- | |||||
| 14 | 0300707 | Knob, Selector (blk) |
|
- | |||||
| 15 | 0068699 | Male Plug, 20a, 125v |
|
- | |||||
| 16 | 0304265 | Supply Cord |
|
- | |||||
| 17 | X087699 | Pkg 60 Ignitor |
|
- | |||||
| 18 | Y0071869 | Ballast |
|
- | |||||
| 19 | Y0071924 | Light Socket |
|
- | |||||
| 20 | WP95292 | Lamp, Fluorescent (Replaces: Y0071927) |
|
Immediately | $ 121.45 | ||||
| 21 | Y0071265 | Bracket, Socket, Fl. Lite |
|
- | |||||
| 22 | 0071920 | Starter, Flourescent |
|
- | |||||
| 23 | 0071964 | Socket, Starter |
|
- | |||||
| 24 | Y0304953 | Switch, Rocker |
|
- | |||||
| 25 | Y0071820 | Indicator Light |
|
- | |||||
| 26 | Y0042289 | Blower Assy Microwaves |
|
- | |||||
| 27 | 0312795 | Net-microcomputer |
|
- | |||||
| 28 | 0059447 | Convenience Outlet |
|
- | |||||
| 29 | Y0063757 | Bracket, Igniter Mounting |
|
- | |||||
| 30 | 0063780 | Shield, Ignitor |
|
- | |||||
| NI | Y0097871 | Nut, Pal 3/4-16 X 1.062 |
|
- | |||||
| NI | Y0068513 | Clamp, Wire-insulate |
|
- | |||||
| NI | Y0065781 | Clamp,wire |
|
- |
