Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0060691 Assy, Br. Burner Appelez-nous -
2 0063785 Bracket, Ignitor Appelez-nous -
3 Y0060687 Bracket, Mtg. Br. Support Appelez-nous -
4 Y0063060 Orifice Spud, Nat. Gas No.50 Appelez-nous -
4 Y0063061 Orifice, No.58 Lp Appelez-nous -
5 0303247 Inlet Pipe Appelez-nous -
6 Y0301361 Valve, Shut-off Appelez-nous -
7 Y0063684 Regulator-5``/10`` Side Inlet Appelez-nous -
8 Y0303219 Fitting 1/4 Npt X 3/8 Comp Appelez-nous -
9 Y0300687 Kit, Orifice,tubing,brkt Appelez-nous -
10 Y0300664 Valve, Gas Appelez-nous -
11 Y0300685 Tubing, Oven Burner Appelez-nous -
12 Y0300684 Tubing, Inlet To Gas Valve Appelez-nous -
13 Y0063709 Oven Burner Appelez-nous -
14 Y0303220 Tubing, Inlet To Manifold Appelez-nous -
15 0303248 Manifold Pipe, Tapped W/bracke Appelez-nous -
16 0042415 Pipe Plug 1/8-27 Npt Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

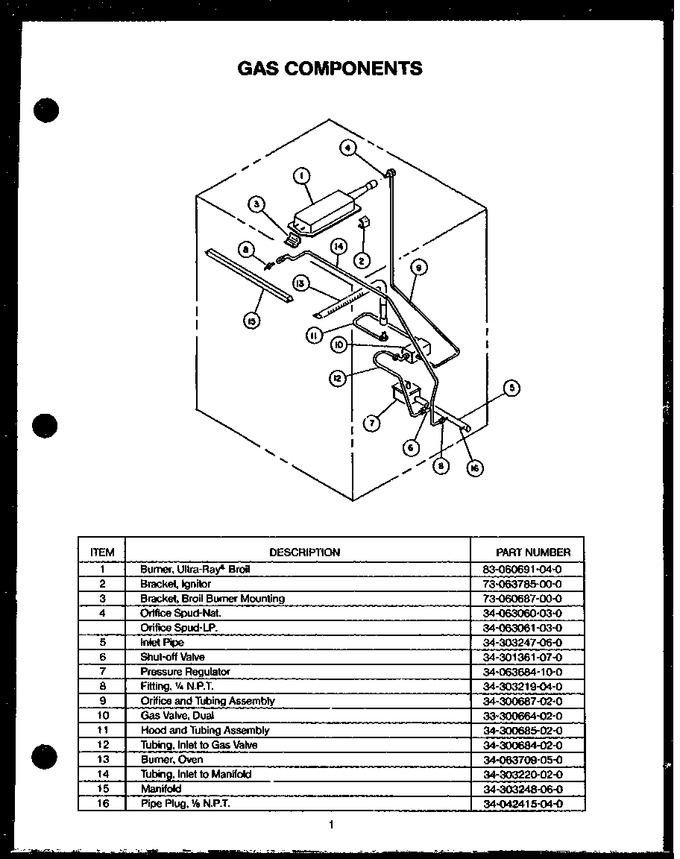

Diagram for RKT-396
