Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DE81-06184A No Longer Available   (Replaces: 13541) Special Order $ 159.06

2 13652 Cover,softener Special Order $ 635.55

3 13651 Assy,softener Case Appelez-nous -
4 13654 Filter,lint Appelez-nous -
5 13540 No Longer Available Appelez-nous -
6 13650 No Longer Available Appelez-nous -
7 13537 Nut Appelez-nous -
8 13538 Washer Appelez-nous -
9 13813 Tub,wash Special Order $ 9.74

10 13535 Washer,flanged Appelez-nous -
NI COMM PART Sealant   (Replaces: 13526) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

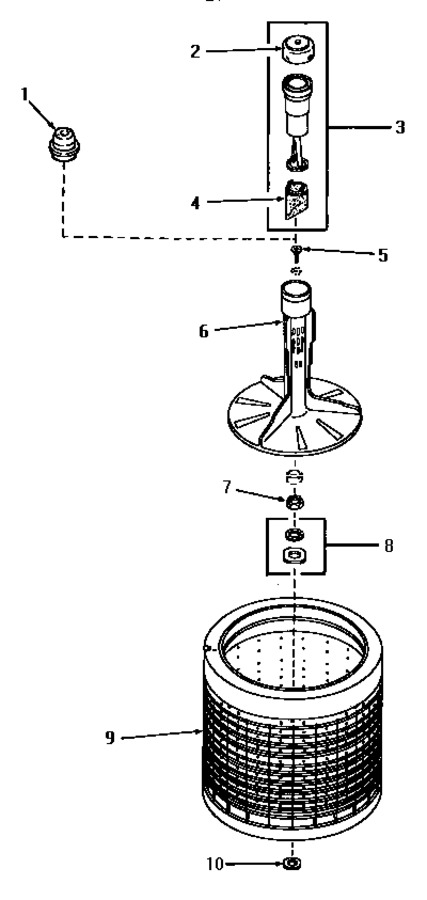

Diagram for VA2013
