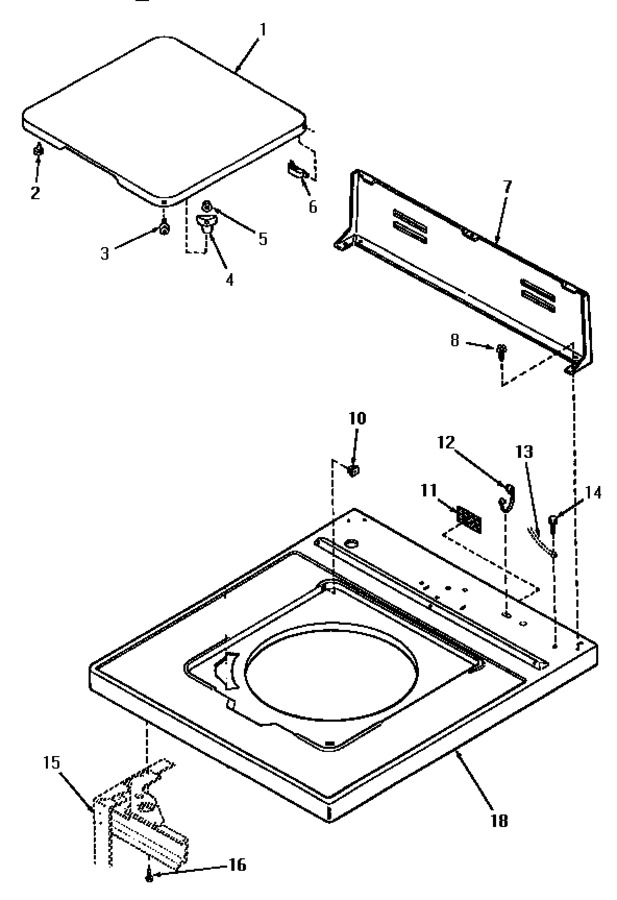

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31315L		Loading Door, Almond		Appelez-nous	-
1	31315W		Loading Door, White		Appelez-nous	-
1	31315H		Loading Door, Harvest Gold				$ 77.94
2	21685		Bumper			Immediately	$ 6.95
3	27203		Assy,screw & Washer		Appelez-nous	-
4	27419		Catch		Appelez-nous	-
5	21752		Nut,8-32 Hex Brilock		Appelez-nous	-
6	27626		Hinge,hidden		Appelez-nous	-
7	31769		Panel,rear		Appelez-nous	-
8	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
10	27625		Bushing				$ 2.33
11	24903		Sticker,disconnect Pow		Appelez-nous	-
12	21903		Strain Relief		Appelez-nous	-
13	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
14	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
15	Y00000000		See Note Cabinet -- (see Page 12, Key 1)		Appelez-nous	-
16	WP27001200		Screw,10-24t X 3/4 Sem   (Replaces: Y31644)				$ 6.91
18	32511W		Cabinet Top, White		Appelez-nous	-
18	32511H		Cabinet Top, Harvest Gold		Appelez-nous	-
18	32511L		Cabinet Top, Almond		Appelez-nous	-
