Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y00000000 See Note Mixing Valve -- (see Page 4, Key 1) Appelez-nous -
2 56392 Screw,8-18 X 3/8 Tappi Appelez-nous -
3 WP596669 Hose Clamp   (Replaces: 27643) In-Stock Immediately $ 7.56

4 32136 Hose, Inlet Appelez-nous -
5 32028 Inlet, Water Appelez-nous -
6 54038 Nut,speed U-type Appelez-nous -
7 Y00000000 See Note Cabinet -- (see Page 12, Key 1) Appelez-nous -
8 DE81-08420A Bracket, Valve   (Replaces: 27126) Special Order $ 136.49

9 20290 Washer, 19/32 Idx1.031 Appelez-nous -
10 WP89503 Inlet Hose   (Replaces: 28097) In-Stock Immediately $ 21.68

11 28605 Washer, Filter Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

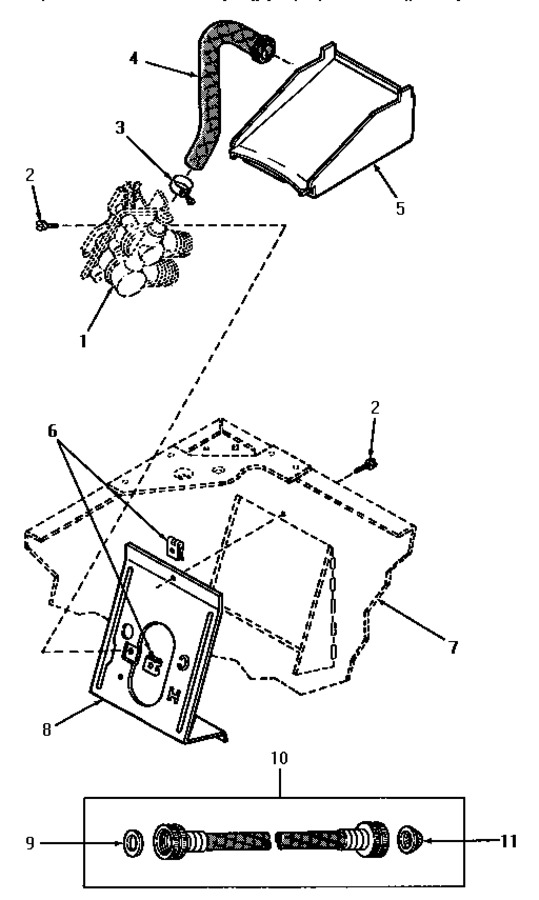

Diagram for VA2013
