SELECT A DIAGRAM

01 - Agitator And Washtub


02 - Cab Top/loading Door & Ctrl Hood Pan


03 - Clutch Base And Clutch Assy


04 - Front Panel, Cabinet And Base


05 - Graphics Panel, Ctrl Hood And Ctrls


06 - Inlet/filler Hose & Mixing Vlv Mtg Brkt


07 - Mixing Valve Assy

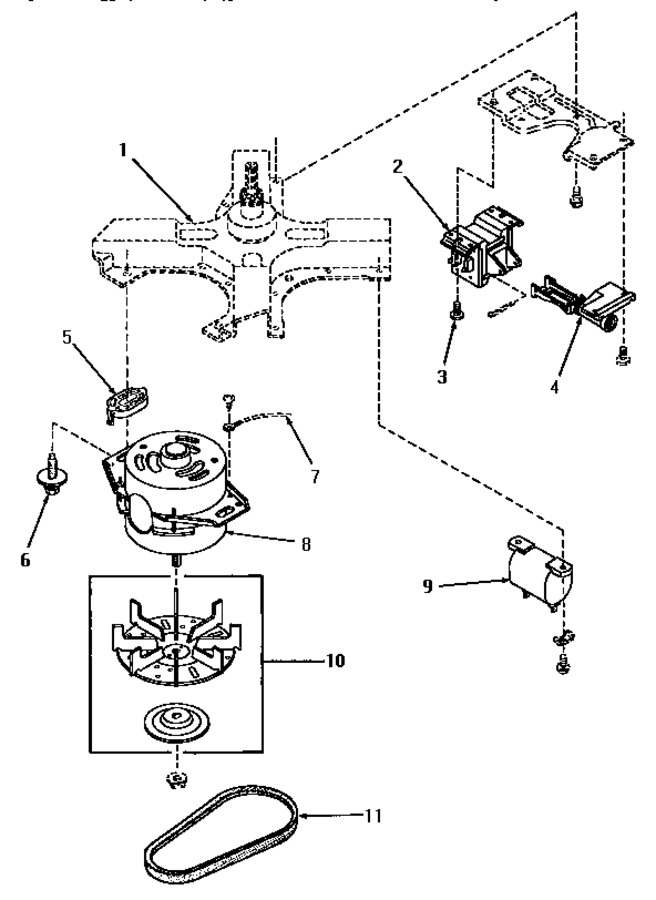

08 - Motor, Belt, Solenoid And Capacitor


09 - Outer Tub And Snubber Assy


10 - Power Cord, Wire Harnesses, Wire & Term


11 - Pump Assy, Hoses And Siphon Break Kit


12 - Pump Assy/brkt/hoses & Siphon Break Kit


13 - Switch And Bracket Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Clutch Assembly -- (see Page 10, Key 1)		Appelez-nous	-
2	13533		Solenoid		Appelez-nous	-
3	C13532		Bolt   (Replaces: 13532)			Immediately	$ 28.79
4	13531		Assy,lever		Appelez-nous	-
5	13523		Insulator		Appelez-nous	-
6	13525		Assy,bolt		Appelez-nous	-
7	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
8	13646		Motor		Appelez-nous	-
9	13655		Capacitor		Appelez-nous	-
10	13521		Pulley,motor				$ 96.62
11	DD81-03542A		Belt,v   (Replaces: 13520)				$ 566.41

    View Diagram in Separate Window       Print Part List
