SELECT A DIAGRAM

01 - Agitator And Washtub


02 - Cab Top/loading Door & Ctrl Hood Pan


03 - Clutch Base And Clutch Assy


04 - Front Panel, Cabinet And Base


05 - Graphics Panel, Ctrl Hood And Ctrls


06 - Inlet/filler Hose & Mixing Vlv Mtg Brkt


07 - Mixing Valve Assy


08 - Motor, Belt, Solenoid And Capacitor


09 - Outer Tub And Snubber Assy

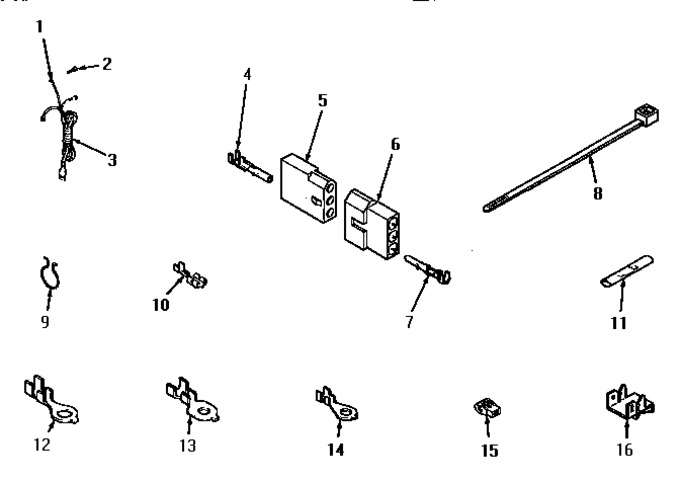

10 - Power Cord, Wire Harnesses, Wire & Term


11 - Pump Assy, Hoses And Siphon Break Kit


12 - Pump Assy/brkt/hoses & Siphon Break Kit


13 - Switch And Bracket Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
2	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
3	22660		Power Cord And Plug				$ 39.67
4	Y00117		Female Socket Terminal		Appelez-nous	-
5	23039		Receptacle,3 Circuit		Appelez-nous	-
6	23040		Plug, 3 Circuit		Appelez-nous	-
7	Y00116		Terminal,pin-male		Appelez-nous	-
8	COMM PART		Wire Tie   (Replaces: 55881)		Appelez-nous	-
9	51291		Clip,wire		Appelez-nous	-
10	Y00121		Spade Terminal(12 Gauge)		Appelez-nous	-
10	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
11	21091		Connector Two 1/4 Inch Male		Appelez-nous	-
12	Y00113		Terminal,ring-1/4 Stud		Appelez-nous	-
13	Y00111		Terminal,ring-10 Stud		Appelez-nous	-
14	00110		Terminal,ring-10 Stud				$ 9.23
15	70210		Insulator,blue		Appelez-nous	-
16	Y00161		Ground Clip		Appelez-nous	-
NI	Y14480		Motor Wire Harness		Appelez-nous	-
NI	32221		Assy,wiring Harness-pu		Appelez-nous	-
NI	32437		Assy,wiring Harness		Appelez-nous	-
NI	20680		18 Gauge Wire		Appelez-nous	-
NI	32373		Assy,wiring Harness-li		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
