| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP285655 |
 |
Clamp,hose (Replaces: 27151) |
|
|
Immediately |
$ 7.55 |
|
|
| 2 |
30148 |
|
Hose,pump To Drain |
|
Appelez-nous
|
- |
|
|
|
| 3 |
29284 |
|
Stand,hose |
|
Appelez-nous
|
- |
|
|
|
| 4 |
13582 |
|
Clamp,hose |
|
Appelez-nous
|
- |
|
|
|
| 5 |
Y00000000 |
|
See Note Outer Tub -- (see Page 8, Key 3) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
WP285655 |
|
Clamp,hose (Replaces: 20391) |
|
|
Immediately |
$ 7.55 |
|
|
| 7 |
23553 |
|
Elbow,drain Hose-plast |
|
|
|
$ 11.23 |
|
|
| 8 |
51784 |
|
Screw,10b-16 X 1/2 Hex |
|
Appelez-nous
|
- |
|
|
|
| 9 |
WP285655 |
|
Clamp, Hose (Replaces: 20211) |
|
|
Immediately |
$ 7.55 |
|
|
| 10 |
WP16272 |
 |
Coupler,hose (Replaces: 25863) |
|
|
|
$ 7.04 |
|
|
| 11 |
28293 |
|
Hose,drain |
|
|
Immediately |
$ 111.16 |
|
|
| 12 |
32026 |
|
Hose, Pump |
|
Appelez-nous
|
- |
|
|
|
| 13 |
29172 |
|
Clamp,hose |
|
Appelez-nous
|
- |
|
|
|
| 14 |
29715 |
|
Pump Assembly |
|
Appelez-nous
|
- |
|
|
|
| 15 |
29715G |
|
Cover |
|
Appelez-nous
|
- |
|
|
|
| 16 |
29715F |
|
Fan |
|
Appelez-nous
|
- |
|
|
|
| 17 |
29715A |
|
Seal Gasket |
|
Appelez-nous
|
- |
|
|
|
| 18 |
29715B |
|
Impeller |
|
Appelez-nous
|
- |
|
|
|
| 19 |
29715C |
|
Body,pump |
|
Appelez-nous
|
- |
|
|
|
| 20 |
29715D |
|
Flange |
|
Appelez-nous
|
- |
|
|
|
| 21 |
29715E |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 22 |
WP27001200 |
 |
Screw-10 16 X.44 (Replaces: Y31645) |
|
|
|
$ 6.91 |
|
|
| 23 |
32216 |
|
Bracket,pump |
|
Appelez-nous
|
- |
|
|
|
| 24 |
29706 |
|
Screw,metric 1.00 X 12 |
|
Appelez-nous
|
- |
|
|
|
| 25 |
Y00000000 |
|
See Note Base -- (see Page 12, Key 20) |
|
Appelez-nous
|
- |
|
|
|
| 26 |
76660 |
 |
Siphon Break Kit (Replaces: 297P3) |
|
|
Immediately |
$ 119.93 |
|
|

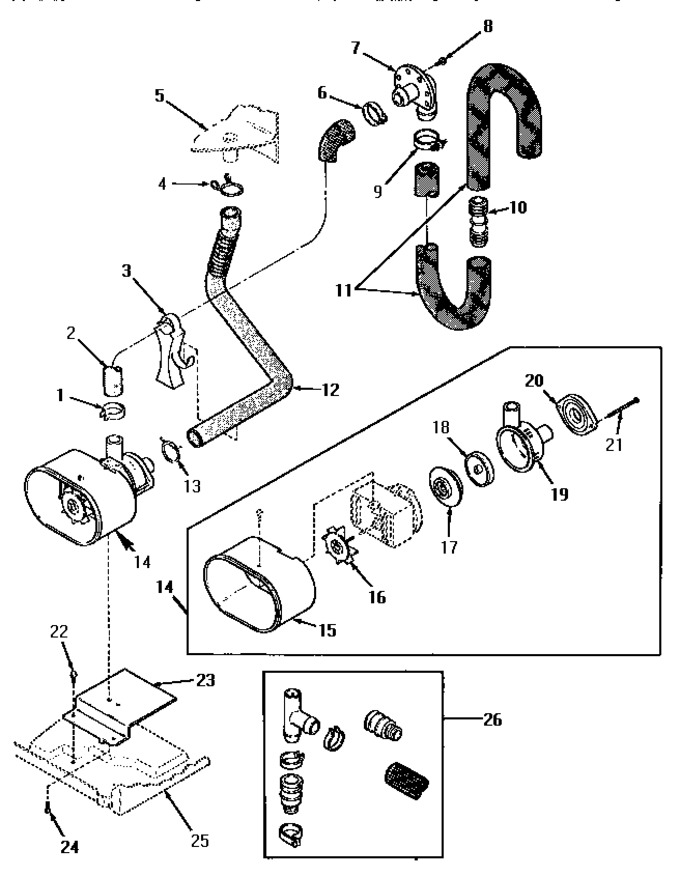

View Diagram in Separate Window
